PRODUCT CODE: S-6414 | PART NUMBER: SKZSW025

OPEN SWAGE SOCKET WITH COTTER PIN 1" (SKZSW025)

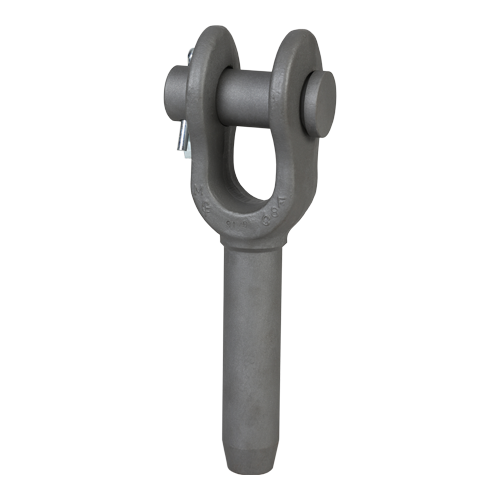

Green Pin® Open Swage Socket with Cotter Pin 1" (SKZSW025)

The Green Pin® Open Swage Socket with Cotter Pin 1" (SKZSW025) is a high-tensile steel rigging component designed for wire rope applications. This product, available for Canadian distribution, is engineered to meet the demands of industrial rigging operations.

Technical Specifications:

  • Product Code: S-6414
  • Our Part Number: SKZSW025
  • Material: Drop forged steel C-1035
  • Finish: Self-colored
  • Rope Diameter: 1" (25.4 mm)
  • Socket Dimensions:
    • Length: 13 3/8" (339.7 mm)
    • Width (inside): 2" (50.8 mm)
    • Width (eye): 4" (101.6 mm)
    • Thickness: 1 1/32" (26.2 mm)
  • Pin Diameter: 2" (50.8 mm)
  • Net Weight: 18.4 lbs (8.3 kg)

Swaging Specifications:

  • Diameter Before Swage: 1.8" (45.7 mm)
  • Diameter After Swage:
    • Minimum: 1.74" (44.2 mm)
    • Maximum: 1.975" (50.2 mm)
  • Inside Diameter: 1.062" (27 mm)

Applications:

This open swage socket is utilized in various industries requiring heavy-duty rigging solutions, including:

  • Construction
  • Marine operations
  • Oil and gas
  • Mining
  • Forestry

It is commonly used for creating wire rope slings, crane rigging, and other load-bearing assemblies where a secure and permanent connection is required.

Features:

  • Open Design: Allows for visual inspection of the swage
  • Cotter Pin: Provides additional security for the connection
  • High-Tensile Steel: Offers strength for demanding applications

For inquiries or to request a quote for the Green Pin® Open Swage Socket with Cotter Pin 1" (SKZSW025), click the 'Add to Quote' button on this page.

Size (inches): 1"
Weight (lbs): 12.0

Working Load Limit (t): N/A
