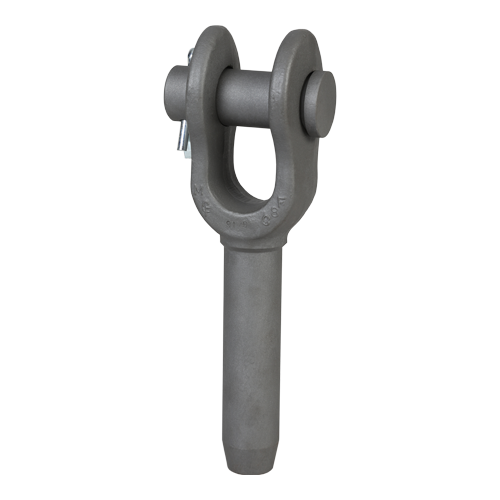

OPEN SWAGE SOCKET WITH COTTER PIN 1-3/8" (SKZSW035)

The Green Pin® Open Swage Socket with Cotter Pin 1-3/8" (SKZSW035) is a precision-engineered rigging component distributed by Vancouver Rigging Supply Ltd. across Canada. This socket, designed for wire rope with a 1-3/8" (35 mm) diameter, is crafted from high tensile drop forged steel C-1035, offering substantial load-bearing capacity.

Key Specifications:

• Product Code: S-6414
• Our Part Number: SKZSW035
• Material: Drop forged steel C-1035
• Finish: Self-coloured

Dimensions:

• Length: 18-1/8" (460 mm)
• Width (inside): 2-1/2" (64 mm)
• Width (eye): 5-1/4" (133 mm)
• Thickness: 1-5/16" (33 mm)
• Pin Diameter: 2-1/2" (64 mm)
• Net Weight: 45.7 lbs (20.7 kg)

Swage Specifications:

• Diameter before swage: 2.56" (65 mm)
• Min. diameter after swage: 2.49" (63 mm)
• Max. diameter after swage: 2.8" (71 mm)

This Green Pin® Open Swage Socket is applicable in various industries including construction, marine operations, and heavy equipment manufacturing. It serves as a termination for wire rope in lifting systems, crane operations, and structural support applications.

The socket's design allows for easy inspection and maintenance, contributing to workplace safety protocols. Its self-coloured finish provides corrosion resistance, making it suitable for both indoor and outdoor use in Canadian environments.

For detailed information on working load limits, safety factors, and compatibility with specific rigging setups, click the 'Add to Quote' button to request a comprehensive quote tailored to your project requirements.
