OPEN SWAGE SOCKET WITH COTTER PIN 1/2" (SKZSW013)

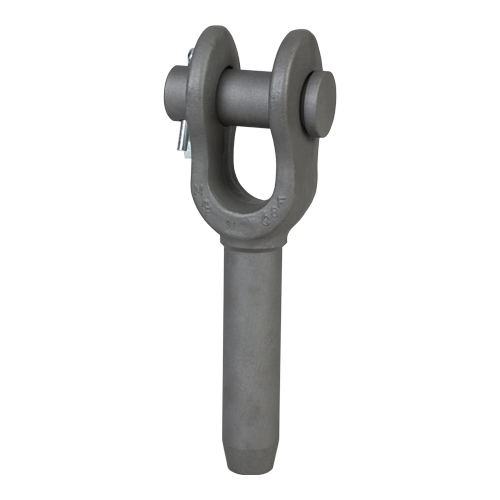

Green Pin® Open Swage Socket with Cotter Pin 1/2" (SKZSW013)

The Green Pin® Open Swage Socket with Cotter Pin, part number SKZSW013, is a high tensile steel rigging component designed for 1/2" wire rope applications. This product, available through Vancouver Rigging Supply Ltd., meets the requirements of Canadian industries that demand robust wire rope terminations.

Technical Specifications:

• Product Code: S-6414
• Rope Diameter: 1/2" (12.7 mm)
• Socket Dimensions:
  • Length: 6 11/16" (169.9 mm)
  • Width (inside): 1" (25.4 mm)
  • Width (eye): 2" (50.8 mm)
  • Thickness: 1/2" (12.7 mm)
• Swage Specifications:
  • Diameter before swage: 0.91" (23.1 mm)
  • Min. diameter after swage: 0.865" (22 mm)
  • Max. diameter after swage: 0.982" (24.9 mm)
• Pin Diameter: 1" (25.4 mm)
• Net Weight: 2.4 lbs (1.09 kg)

Material and Construction:

Fabricated from drop forged steel C-1035, this open swage socket maintains its structural integrity in demanding environments. The self-coloured finish provides corrosion resistance for outdoor applications.

Applications:

This Green Pin® open swage socket is utilized in various Canadian industries, including:

• Construction: For crane operations and heavy lifting tasks
• Maritime: In shipyard rigging and offshore platforms
• Forestry: For cable logging systems
• Mining: In hoisting and conveyor systems

Installation and Use:

The open design allows for easy inspection and maintenance. The cotter pin secures the connection, preventing accidental disengagement during operation. Users must adhere to the specified swage diameters to ensure proper wire rope termination.

Compliance and Safety:

This product adheres to relevant industry standards for rigging hardware. Users must conduct regular inspections and replace the socket if signs of wear, deformation, or damage are observed.

To obtain pricing information or place an order for the Green Pin® Open Swage Socket with Cotter Pin 1/2" (SKZSW013), click the 'Add to Quote' button on this page.
