PRODUCT CODE: S-6414 | PART NUMBER: SKZSW028
OPEN SWAGE SOCKET WITH COTTER PIN 1-1/8" (SKZSW028)

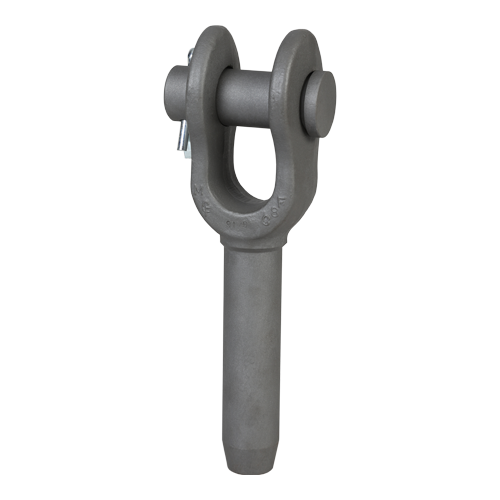

Green Pin® Open Swage Socket with Cotter Pin 1-1/8" (SKZSW028)
The Green Pin® Open Swage Socket with Cotter Pin, part number SKZSW028, is a high-performance rigging component designed for 1-1/8" wire rope applications. This open-type swage socket, featuring a spring pin, is manufactured from high tensile steel, offering substantial load-bearing capacity for industrial rigging operations across Canada.
Technical Specifications:
- Product Code: S-6414
- Material: Drop forged steel C-1035
- Finish: Self-coloured
- Rope Diameter: 1-1/8" (28.575 mm)
- Socket Length: 15" (381 mm)
- Net Weight: 26.9 lbs (12.2 kg)
Dimensional Details:
- Swage Diameter Range: 1.99" - 2.245" (50.546 mm - 57.023 mm)
- Inside Diameter: 1.188" (30.175 mm)
- Pin Diameter: 2-1/4" (57.15 mm)
- Socket Thickness: 1-3/16" (30.163 mm)
- Inside Width: 2-1/4" (57.15 mm)
- Eye Width: 4-1/2" (114.3 mm)
Applications and Industries:
This Green Pin® Open Swage Socket is engineered for use in:
- Maritime operations
- Construction projects
- Oil and gas installations
- Mining operations
- Heavy machinery lifting
Key Features:
- High tensile steel construction for durability
- Open design facilitates easier inspection and maintenance
- Cotter pin for added security
- Precision-engineered swage dimensions for optimal wire rope termination
The Green Pin® Open Swage Socket with Cotter Pin meets industry standards for quality and performance. It is designed to withstand the rigors of heavy lifting and pulling operations in various environmental conditions.
For procurement inquiries or to request a quote for the Green Pin® Open Swage Socket with Cotter Pin (SKZSW028), click the 'Add to Quote' button on this page. Vancouver Rigging Supply Ltd. provides this product as part of its comprehensive inventory of rigging solutions for Canadian industries.
Size (inches): 1-1/8"
Weight (lbs): 26.5
Working Load Limit (t): N/A
