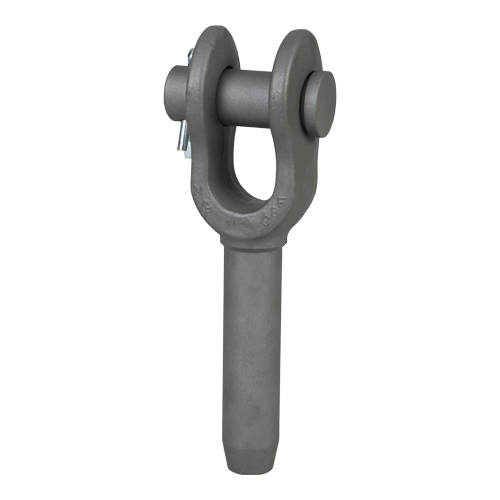

OPEN SWAGE SOCKET WITH COTTER PIN 1-1/4" (SKZSW032)

The Green Pin® Open Swage Socket with Cotter Pin 1-1/4" (SKZSW032) is a high-tensile steel component designed for wire rope applications. This product, available for Canadian distribution, is engineered to meet rigorous industry standards.

Product Specifications:

• Part Number: SKZSW032
• Product Code: S-6414
• Material: Drop forged steel C-1035
• Finish: Self-colored

Dimensions:

• Wire Rope Diameter: 1-1/4" (32 mm)
• Socket Diameter Before Swage: 2.3" (58 mm)
• Min. Diameter After Swage: 2.24" (57 mm)
• Max. Diameter After Swage: 2.525" (64 mm)
• Internal Diameter: 1.328" (34 mm)
• Pin Diameter: 2-1/2" (64 mm)
• Length: 16-1/2" (419 mm)
• Thickness: 1-3/16" (30 mm)
• Internal Width: 2-1/2" (64 mm)
• Eye Width: 5" (127 mm)
• Net Weight: 35.8 lbs (16.2 kg)

Applications:

• Heavy Construction: Crane operations, bridge building
• Maritime Industry: Offshore platforms, shipyards
• Mining Operations: Equipment lifting, material handling
• Forestry: Logging operations, timber transport

This Green Pin® Open Swage Socket is manufactured to withstand substantial loads in challenging environments. It is compatible with 1-1/4" diameter wire ropes, making it suitable for heavy-duty lifting operations across various industries in Canada.

For inquiries or to obtain pricing information for the Green Pin® Open Swage Socket with Cotter Pin 1-1/4" (SKZSW032), please click the 'Add to Quote' button on this page.
