PRODUCT CODE: G-6416 | PART NUMBER: SKGSB095

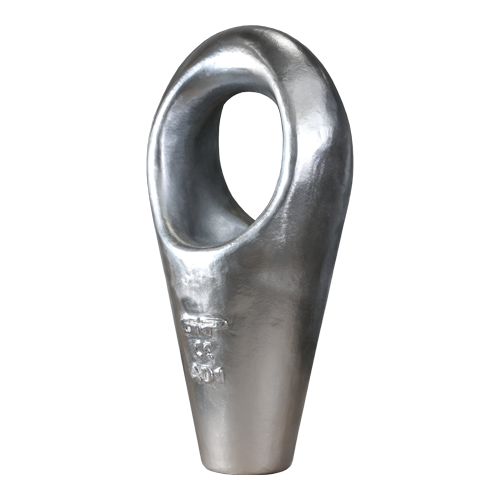

GREEN PIN SHORT BOW CLOSED SPELTER SOCKET 3-3/4" - 4" (SKGSB095)

The Green Pin® Short Bow Closed Spelter Socket (SKGSB095) with a 3-3/4" - 4" capacity is a galvanized cast alloy steel component for wire rope applications. This G-6416 model, available through Vancouver Rigging Supply Ltd., serves Canadian industries requiring heavy-duty rigging solutions.

Key Specifications:

  • Minimum Breaking Load: 900 t
  • Wire Rope Diameter: 3-3/4" - 4" (95 mm - 102 mm)
  • Dimensions: 27-9/16" L x 14-3/4" W x 3-15/16" T (700 mm x 375 mm x 100 mm)
  • Eye Dimensions: 9-1/4" L x 8-15/32" W (235 mm x 215 mm)
  • Opening: 4-1/4" (108 mm)
  • Net Weight: 419 lbs (190 kg)

Features and Applications:

  • Temperature Range: -40°C to +200°C
  • Finish: Hot-dipped galvanized for corrosion resistance
  • Compatibility: Can be used with Socket Lock Socketing Resin

This short bow socket finds applications in maritime operations, construction projects, and industrial lifting tasks across Canada. Its galvanized finish makes it suitable for outdoor use in various weather conditions.

For detailed information and to request a quote for the Green Pin® Short Bow Closed Spelter Socket (SKGSB095), click the 'Add to Quote' button on this page.

Size (inches): 3-3/4" - 4"
Weight (lbs): 419.0

Working Load Limit (t): MBL 900t
