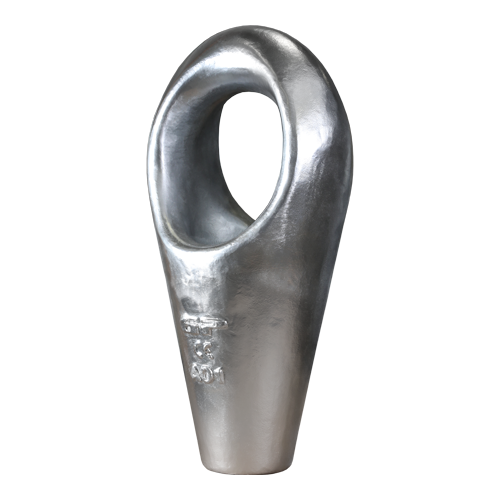

GREEN PIN SHORT BOW CLOSED SPELTER SOCKET 3" - 3-1/8" (SKGSB075)

The Green Pin® Short Bow Closed Spelter Socket (SKGSB075) is engineered for wire ropes with diameters of 3" - 3-1/8" (76 mm - 79 mm). This G-6416 model, distributed by Vancouver Rigging Supply Ltd., is crafted from cast alloy steel and hot-dip galvanized for corrosion resistance.

Key Specifications:

• Minimum Breaking Load: 600 t
• Dimensions: 23 1/32" (585 mm) length, 11 5/8" (295 mm) width
• Bow Thickness: 3" (76 mm)
• Eye Measurements: 7 11/16" (195 mm) length, 6 7/8" (175 mm) width
• Opening: 3 1/2" (89 mm)
• Net Weight: 152 lbs (69 kg)

Performance Characteristics:

• Temperature Range: -40°C to +200°C
• Compatibility: Use with Socket Lock Socketing Resin

This short bow socket finds applications in marine operations, offshore platforms, and heavy construction projects across Canada. Its design addresses the requirements of industries dealing with substantial loads in challenging environments.

For procurement inquiries, utilize the 'Add to Quote' button to initiate a quote request for the Green Pin® Short Bow Closed Spelter Socket (SKGSB075).
