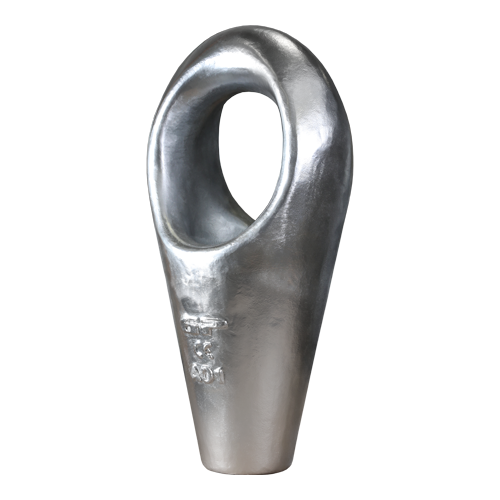

GREEN PIN SHORT BOW CLOSED SPELTER SOCKET 3-1/4" - 3-3/8" (SKGSB080)

The Green Pin® Short Bow Closed Spelter Socket (SKGSB080) meets rigorous engineering standards for wire rope applications in Canadian industries. This G-6416 socket, designed for 3-1/4" - 3-3/8" (83 - 86 mm) diameter wire rope, offers a minimum breaking load of 700 t.

Key specifications:

• Length: 24 19/32" (625 mm)
• Width: 12 19/32" (320 mm)
• Bow thickness: 3 7/32" (82 mm)
• Eye dimensions: 8 1/2" x 7 5/8" (216 x 194 mm)
• Opening: 3 5/8" (92 mm)
• Net weight: 265 lbs (120 kg)

Manufactured from cast alloy steel with hot-dip galvanization, this socket operates in temperatures from -40°C to +200°C. It pairs with Socket Lock Socketing Resin for secure wire rope terminations.

Applications include:

• Offshore oil and gas platforms
• Mining operations
• Bridge construction
• Heavy machinery lifting

This Green Pin® product adheres to relevant industry standards and certifications. For technical specifications or to request a quote, click the 'Add to Quote' button on this page.
