PRODUCT CODE: G-6416 | PART NUMBER: SKGSB085

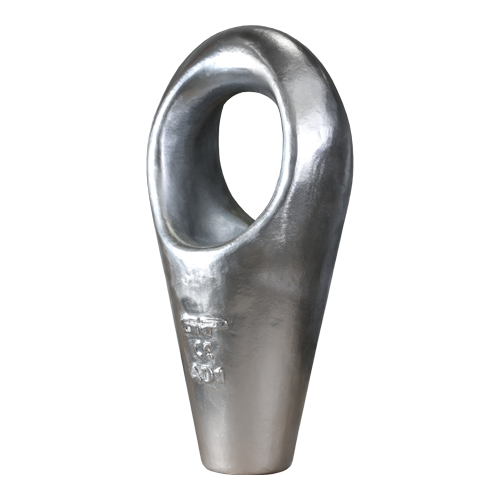

GREEN PIN SHORT BOW CLOSED SPELTER SOCKET 3-1/2" - 3-5/8" (SKGSB085)

The Green Pin® Short Bow Closed Spelter Socket (SKGSB085) is a high-capacity rigging component designed for wire ropes 3-1/2" to 3-5/8" (89 mm to 92 mm) in diameter. This G-6416 socket, available through Canadian distribution, offers a minimum breaking load of 800 t, making it suitable for heavy industrial applications.

Key Specifications:

  • Length: 26 3/8" (670 mm)
  • Width: 13 25/32" (350 mm)
  • Bow Thickness: 3 5/8" (92 mm)
  • Eye Length: 8 21/32" (220 mm)
  • Eye Width: 7 15/16" (202 mm)
  • Opening: 3 29/32" (99 mm)
  • Net Weight: 245 lbs (111 kg)

Material and Finish:

  • Construction: Cast alloy steel
  • Surface Treatment: Hot-dip galvanized

Performance:

  • Temperature Range: -40°C to +200°C
  • Compatibility: For use with Socket Lock Socketing Resin

This Green Pin® socket serves industries such as marine engineering, offshore oil and gas, and heavy construction throughout Canada. Its galvanized finish provides corrosion resistance for extended service life in maritime environments.

The SKGSB085 is engineered for applications requiring substantial load-bearing capacity, including crane operations, bridge construction, and mining equipment. Its closed design enhances safety in lifting operations.

For inquiries or to obtain this Green Pin® Short Bow Closed Spelter Socket, click the 'Add to Quote' button to initiate the quotation process.

Size (inches): 3-1/2" - 3-5/8"
Weight (lbs): 245.0

Working Load Limit (t): MBL 800t
