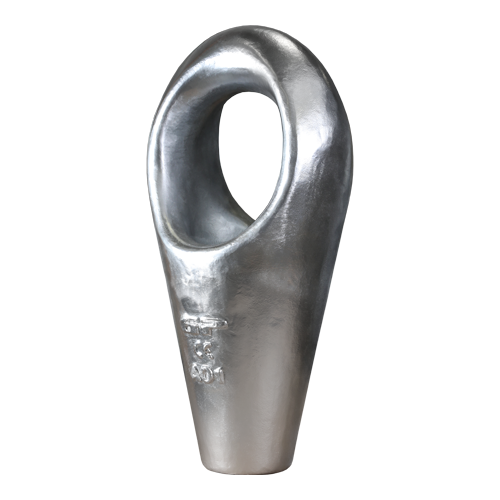

GREEN PIN SHORT BOW CLOSED SPELTER SOCKET 2-3/4" - 2-7/8" (SKGSB070)

The Green Pin® Short Bow Closed Spelter Socket (SKGSB070) is a specialized rigging component designed for wire ropes with diameters of 2-3/4" to 2-7/8" (70 mm to 73 mm). This G-6416 model, available for Canadian distribution, is engineered to meet the exacting standards of industrial rigging applications.

Key Specifications:

• Minimum Breaking Load: 500 t
• Length: 21 1/4" (540 mm)
• Width: 10 25/32" (274 mm)
• Bow Thickness: 2 15/16" (75 mm)
• Eye Dimensions: 6 7/8" x 6 15/32" (175 mm x 164 mm)
• Opening: 3 1/8" (79 mm)
• Net Weight: 150 lbs (68 kg)

Material and Finish:

• Construction: Cast alloy steel
• Surface Treatment: Hot-dip galvanized

Operating Conditions:

• Temperature Range: -40°C to +200°C

This Green Pin® socket is compatible with Socket Lock Socketing Resin for secure wire rope terminations. It finds applications in maritime operations, construction projects, and heavy industrial settings across Canada.

For procurement inquiries or to request a quote for the Green Pin® Short Bow Closed Spelter Socket (SKGSB070), please use the 'Add to Quote' button on this page.
