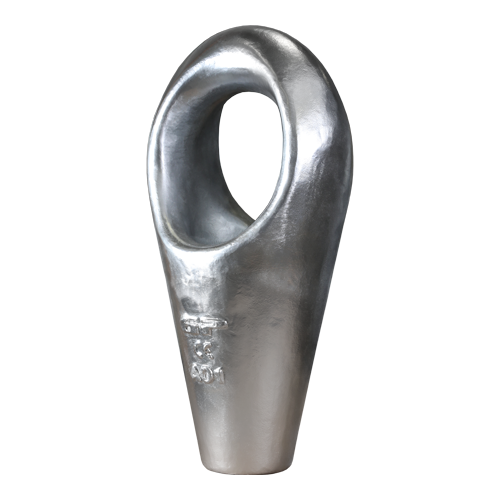

GREEN PIN SHORT BOW CLOSED SPELTER SOCKET 2" - 2-1/8" (SKGSB050)

The Green Pin® Short Bow Closed Spelter Socket (SKGSB050) is engineered for wire ropes measuring 2" - 2-1/8" (51 - 54 mm) in diameter. This G-6416 model, distributed by Vancouver Rigging Supply Ltd., is crafted from cast alloy steel and hot-dip galvanized for corrosion resistance.

Key Specifications:

• Minimum Breaking Load: 250 t
• Length: 15 11/32" (390 mm)
• Width: 7 7/8" (200 mm)
• Bow Thickness: 2 1/8" (54 mm)
• Eye Length: 5 3/16" (132 mm)
• Eye Width: 4 23/32" (120 mm)
• Opening: 2 1/4" (57 mm)
• Net Weight: 70.6 lbs (32 kg)

Performance Features:

• Temperature Range: -40°C to +200°C
• Compatibility: Use with Socket Lock Socketing Resin

This Green Pin® socket is designed for heavy-duty applications in marine, offshore, and construction industries across Canada. It provides a secure termination for wire ropes in lifting and mooring systems.

To obtain pricing information and place an order for the Green Pin® Short Bow Closed Spelter Socket (SKGSB050), click the 'Add to Quote' button on this page.
