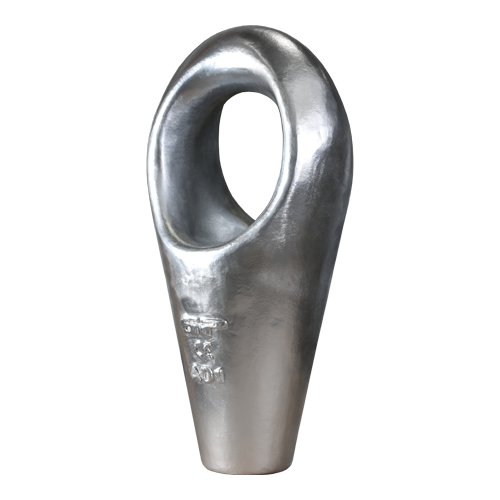

GREEN PIN SHORT BOW CLOSED SPELTER SOCKET 2-1/2" - 2-5/8" (SKGSB065)

The Green Pin® Short Bow Closed Spelter Socket (SKGSB065) is a specialized rigging component designed for wire ropes measuring 2-1/2" - 2-5/8" (63.5 mm - 66.7 mm) in diameter. This G-6416 model, distributed by Vancouver Rigging Supply Ltd., is engineered for heavy-duty applications across various Canadian industries.

Key Specifications:

• Minimum Breaking Load: 400 t
• Length: 18 7/16" (468 mm)
• Width: 9 27/32" (250 mm)
• Bow Thickness: 2 11/16" (68 mm)
• Eye Length: 6 1/2" (165 mm)
• Eye Width: 5 29/32" (150 mm)
• Opening: 2 7/8" (73 mm)
• Net Weight: 123 lbs (55.8 kg)

Construction and Durability:

• Material: Cast alloy steel
• Finish: Hot-dipped galvanized
• Temperature Range: -40°C to +200°C

This Green Pin® socket is manufactured to meet the requirements of offshore oil and gas, marine, and construction sectors operating in Canada's varied environments. Its closed design and galvanized finish provide protection against corrosion, making it appropriate for use in coastal and offshore applications.

Applications:

• Offshore drilling platforms
• Marine vessel rigging
• Heavy construction lifting
• Bridge construction
• Mining operations

The SKGSB065 is compatible with Socket Lock Socketing Resin for secure wire rope termination. This combination enhances the overall rigging system integrity in load-bearing applications.

For inquiries or to obtain this Green Pin® Short Bow Closed Spelter Socket for your Canadian operations, click the 'Add to Quote' button on this page to initiate the quotation process.
