GREEN PIN SHORT BOW CLOSED SPELTER SOCKET 1-3/4" - 1-7/8" (SKGSB045)

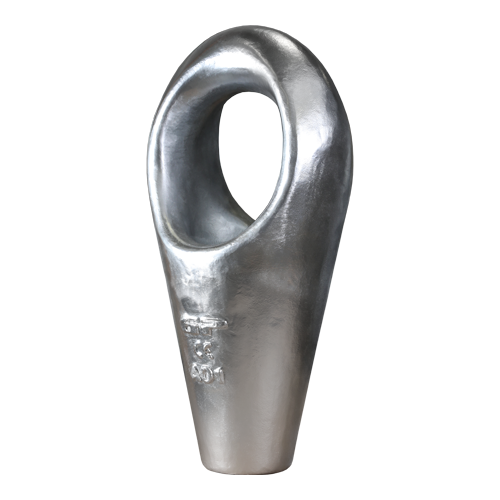

The Green Pin® Short Bow Closed Spelter Socket (SKGSB045) is a cast alloy steel component designed for wire ropes measuring 1-3/4" to 1-7/8" in diameter. This G-6416 model, distributed by Vancouver Rigging Supply Ltd., serves industrial applications across Canada.

Key Specifications:

• Minimum Breaking Load: 200 t
• Dimensions: 13-11/16" (347 mm) length, 7" (178 mm) width, 1-21/32" (42 mm) bow thickness
• Eye Measurements: 4-23/32" (120 mm) length, 4-13/32" (112 mm) width
• Opening: 2" (51 mm)
• Net Weight: 35.3 lbs (16 kg)

Features and Applications:

• Material: Cast alloy steel with hot-dipped galvanization
• Temperature Range: -40°C to +200°C
• Compatibility: Use with Socket Lock Socketing Resin

This Green Pin® socket finds use in construction, maritime operations, and heavy industry throughout Canada. Its galvanized finish provides corrosion resistance for outdoor and marine environments.

For inquiries or to obtain pricing information for the Green Pin® Short Bow Closed Spelter Socket (SKGSB045), click the 'Add to Quote' button on this page.
