PRODUCT CODE: G-6416 | PART NUMBER: SKGSB038

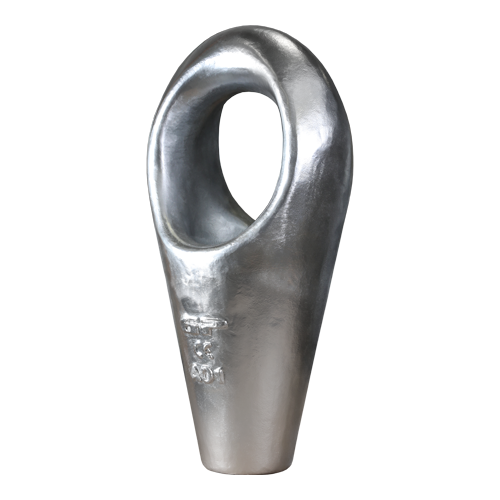

GREEN PIN SHORT BOW CLOSED SPELTER SOCKET 1-1/2" - 1-5/8" (SKGSB038)

The Green Pin® Short Bow Closed Spelter Socket (SKGSB038) is a robust rigging component designed for 1-1/2" - 1-5/8" wire rope applications. This G-6416 model, distributed by Vancouver Rigging Supply Ltd., is engineered to meet the demands of heavy-duty lifting operations across Canada.

Key Specifications:

  • Minimum Breaking Load: 160 t
  • Wire Rope Diameter: 1-1/2" - 1-5/8" (38.1 mm - 41.3 mm)
  • Length: 11-13/16" (300 mm)
  • Width: 5-25/32" (147 mm)
  • Bow Thickness: 1-1/2" (38.1 mm)
  • Eye Length: 4-1/16" (103 mm)
  • Eye Width: 3-5/8" (92.1 mm)
  • Opening: 1-23/32" (43.7 mm)
  • Net Weight: 22.1 lbs (10 kg)

Construction and Durability:

  • Material: Cast alloy steel
  • Finish: Hot-dipped galvanized
  • Temperature Range: -40°C to +200°C

This Green Pin® socket is manufactured to withstand the rigors of marine, construction, and industrial lifting applications. Its cast alloy steel construction and galvanized finish provide resistance against corrosion, making it suitable for outdoor and marine environments.

Applications:

  • Offshore oil and gas platforms
  • Shipyards and marine operations
  • Construction sites
  • Mining operations
  • Heavy industrial lifting

The SKGSB038 is compatible with Socket Lock Socketing Resin, ensuring a secure connection between the wire rope and socket. This combination is often used in applications where traditional wedge sockets may not be sufficient.

For engineers and rigging professionals seeking this Green Pin® Short Bow Closed Spelter Socket, click the 'Add to Quote' button to request pricing information from Vancouver Rigging Supply Ltd., your Canadian source for quality rigging products.

Size (inches): 1-1/2" - 1-5/8"
Weight (lbs): 22.1

Working Load Limit (t): MBL 160t
