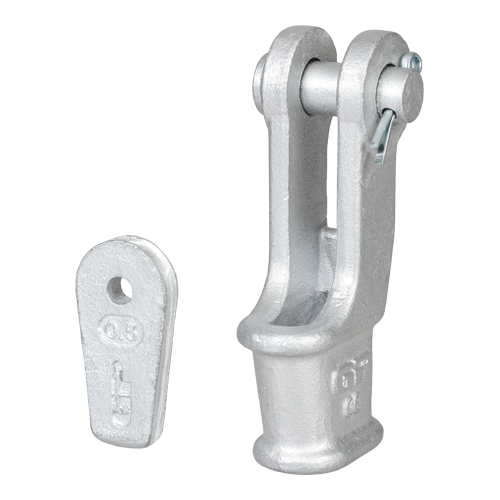

GREEN PIN OPEN WEDGE SOCKET WITH COTTER PIN 7/8" (SKGOW022)

The Green Pin® Open Wedge Socket with Cotter Pin 7/8" (SKGOW022) is a high-tensile steel rigging component distributed across Canada by Vancouver Rigging Supply Ltd. This G-6413 model, designed for 7/8" wire rope, offers a working load limit of 55 t and a minimum breaking load of 55 t.

Key dimensions of this open wedge socket include:

• Length: 11 11/32" (288 mm)
• Length to center pin: 9 7/16" (240 mm)
• Width: 4 11/32" (110 mm)
• Width inside: 1 23/32" (43 mm)
• Diameter pin: 1 5/8" (41 mm)
• Thickness side plates: 3/4" (19 mm)
• Diameter eye: 3 3/4" (95 mm)
• Net weight: 24.3 lbs (11 kg)

This Green Pin® product is hot-dip galvanized for corrosion resistance and can operate in temperatures ranging from -40°C to +200°C. It adheres to EN 13411-6 standards, ensuring compatibility with Canadian safety regulations.

Industries such as construction, marine, and heavy machinery benefit from the SKGOW022's capabilities in load-bearing applications. Its design allows for efficient wire rope termination in various rigging setups.

To obtain pricing information and place an order for the Green Pin® Open Wedge Socket with Cotter Pin 7/8" (SKGOW022), click the 'Add to Quote' button on this page.
