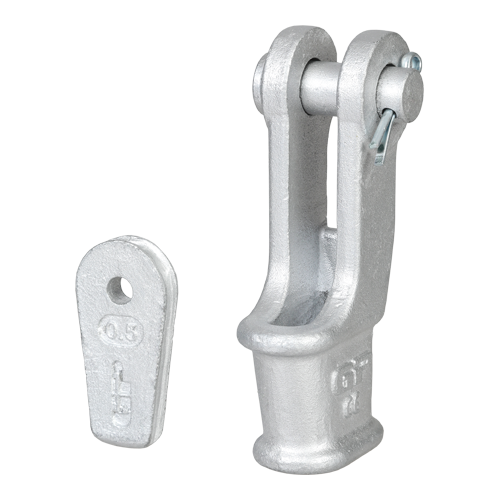

GREEN PIN OPEN WEDGE SOCKET WITH COTTER PIN 5/8" (SKGOW016)

The Green Pin® Open Wedge Socket with Cotter Pin 5/8" (SKGOW016) is a high-performance rigging component distributed by Vancouver Rigging Supply Ltd. for Canadian industrial applications. This G-6413 model, crafted from high tensile steel with hot-dip galvanization, offers durability in various environmental conditions.

Key Specifications:

• Working Load Limit: 25 t
• Minimum Breaking Load: 25 t
• Wire Rope Diameter: 5/8" (16 mm)
• Temperature Range: -40°C to +200°C

Dimensions:

• Length: 8 5/16" (211 mm)
• Length to Center Pin: 6 15/16" (176 mm)
• Width: 3 7/32" (82 mm)
• Internal Width: 1 7/32" (31 mm)
• Pin Diameter: 1 3/16" (30 mm)
• Side Plate Thickness: 19/32" (15 mm)
• Eye Diameter: 2 3/4" (70 mm)
• Net Weight: 8.82 lbs (4 kg)

This Green Pin® Open Wedge Socket CP adheres to EN 13411-6 standards, ensuring compatibility with Canadian industrial regulations. Its design supports wire ropes ranging from 7-8 mm to 81-86 mm in diameter, accommodating various rigging configurations.

Applications:

• Maritime Operations: Shipyard crane rigging, offshore platform installations
• Construction: High-rise building projects, bridge construction
• Mining: Equipment hoisting, ore transportation systems
• Forestry: Cable logging operations, timber handling

The SKGOW016 open wedge socket integrates seamlessly into rigging systems requiring secure wire rope terminations. Its cotter pin design facilitates assembly and inspection processes in accordance with Canadian safety protocols.

To include this Green Pin® Open Wedge Socket in your next project quote, select the 'Add to Quote' button on this page. Vancouver Rigging Supply Ltd. will respond promptly with pricing and availability information for Canadian distribution.
