PRODUCT CODE: G-6413 | PART NUMBER: SKGOW008

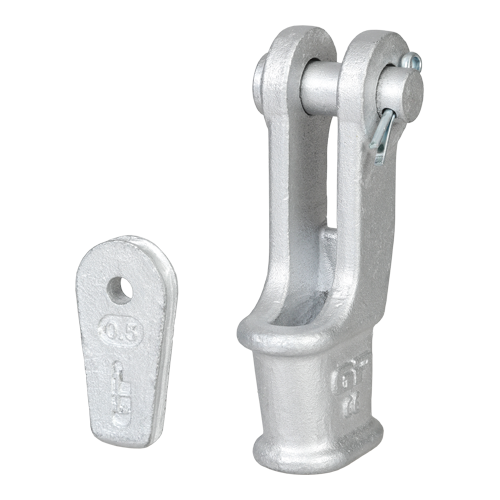

GREEN PIN OPEN WEDGE SOCKET WITH COTTER PIN 5/16" (SKGOW008)

The Green Pin® Open Wedge Socket with Cotter Pin 5/16" (SKGOW008) is a high-tensile steel rigging component distributed by Vancouver Rigging Supply Ltd. across Canada. This G-6413 model, engineered for 5/16" wire rope, offers a Working Load Limit of 8 t and a minimum breaking load of 8 t.

Key Specifications:

  • Length: 5 1/32" (128 mm)
  • Length to center pin: 4 11/32" (110 mm)
  • Width: 2" (51 mm)
  • Internal width: 23/32" (18 mm)
  • Pin diameter: 5/8" (16 mm)
  • Side plate thickness: 11/32" (9 mm)
  • Eye diameter: 1 13/32" (36 mm)
  • Net weight: 1.73 lbs (0.78 kg)

Features and Applications:

  • Material: High-tensile steel with hot-dip galvanization
  • Temperature range: -40°C to +200°C
  • Compliance: Generally to EN 13411-6

This open wedge socket finds applications in construction, marine operations, and industrial lifting. Its design allows for quick wire rope attachment and detachment, beneficial in shipyards, offshore platforms, and construction sites.

For inquiries or to obtain a quote for the Green Pin® Open Wedge Socket with Cotter Pin 5/16" (SKGOW008), click the 'Add to Quote' button on this page.

Size (inches): 5/16"
Weight (lbs): 1.73

Working Load Limit (t): 8.0
