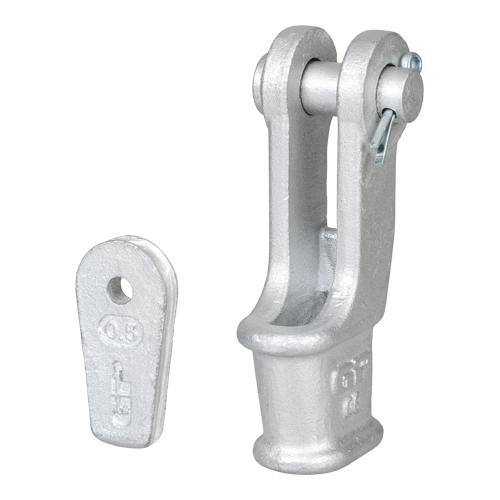

GREEN PIN OPEN WEDGE SOCKET WITH COTTER PIN 2" - 2-1/8" (SKGOW050)

The Green Pin® Open Wedge Socket with Cotter Pin 2" - 2-1/8" (SKGOW050) is a high-performance rigging component distributed by Vancouver Rigging Supply Ltd. across Canada. This G-6413 model, part number SKGOW050, is engineered for wire ropes with diameters of 2" (51 mm).

Key specifications include:

• Minimum Breaking Load: 280t
• Length: 29 11/32" (746 mm)
• Width: 9 7/16" (240 mm)
• Internal Width: 3 31/32" (101 mm)
• Pin Diameter: 3 3/4" (95 mm)
• Eye Diameter: 7 5/8" (194 mm)
• Net Weight: 287 LBS (130 kg)

Constructed from high tensile steel and hot-dip galvanized, this open wedge socket operates in temperatures from -40°C to +200°C. It conforms to EN 13411-6 standards, ensuring compliance with industry regulations.

Applications of this Green Pin® product include:

• Offshore oil and gas operations
• Marine and port facilities
• Construction and infrastructure projects
• Mining and quarrying operations

For procurement inquiries, utilize the 'Add to Quote' button to initiate a quotation process with Vancouver Rigging Supply Ltd.
