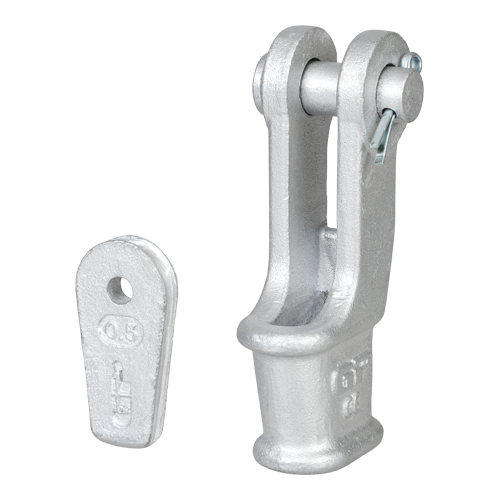

GREEN PIN OPEN WEDGE SOCKET WITH COTTER PIN 1/2" (SKGOW013)

The Green Pin® Open Wedge Socket with Cotter Pin 1/2" (SKGOW013) is a high-performance rigging component distributed by Vancouver Rigging Supply Ltd. throughout Canada. This G-6413 model, crafted from high tensile steel and hot-dip galvanized, offers a working load limit of 20 t and a minimum breaking load of 20 t.

Key Specifications:

• Wire rope diameter: 1/2" (12.7 mm)
• Overall length: 6 7/8" (174.6 mm)
• Length to center pin: 5 3/4" (146 mm)
• Width: 2 19/32" (65.9 mm)
• Internal width: 31/32" (24.6 mm)
• Pin diameter: 31/32" (24.6 mm)
• Side plate thickness: 15/32" (11.9 mm)
• Eye diameter: 2 1/4" (57.2 mm)
• Net weight: 5.29 lbs (2.4 kg)

Performance and Durability:

• Temperature range: -40°C to +200°C
• Conformity: Generally to EN 13411-6 standard

This open wedge socket finds applications in construction, marine operations, and industrial lifting tasks across Canada. Its design allows for easy wire rope installation and inspection, aligning with safety protocols in various sectors.

Industries utilizing this component include offshore oil and gas, shipbuilding, and heavy machinery manufacturing. The galvanized finish resists corrosion, making it appropriate for both indoor and outdoor use in Canada's varied climate conditions.

To obtain pricing information or to place an order for the Green Pin® Open Wedge Socket with Cotter Pin 1/2" (SKGOW013), click the 'Add to Quote' button on this page.
