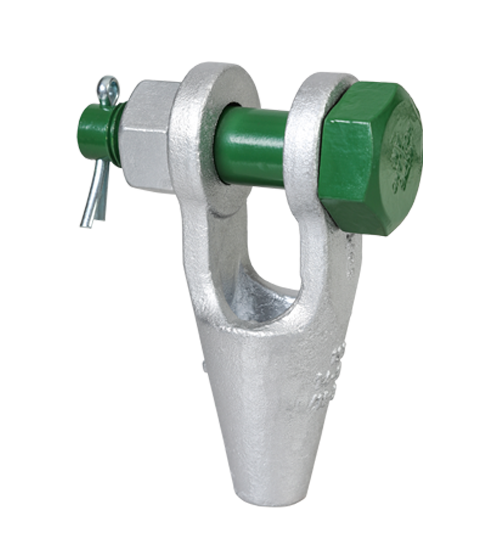

GREEN PIN OPEN SPELTER SOCKET WITH SAFETY BOLT 1" (SKGOS025SB)

The Green Pin® Open Spelter Socket with Safety Bolt 1" (SKGOS025SB) is a high-tensile steel rigging component distributed by Vancouver Rigging Supply Ltd. across Canada. This G-6422 model features a 1" (25 mm) wire rope capacity and a minimum breaking load of 85t.

Key specifications include:

• Length: 10 13/16" (275 mm)
• Width: 6 15/16" (176 mm)
• Internal width: 2" (51 mm)
• Pin diameter: 1 31/32" (50 mm)
• Internal length: 3" (76 mm)
• Opening: 1 3/32" (28 mm)
• Net weight: 21.8 lbs (9.9 kg)

The socket's design incorporates a safety bolt and split pin, preventing unintended pin disengagement. Hot-dip galvanization provides corrosion resistance for longevity in various environments. This component functions within a temperature range of -40°C to +200°C.

Industries such as construction, marine operations, and heavy equipment handling can utilize this open spelter socket for wire rope terminations. It is compatible with Socket Lock Socketing Resin for secure connections.

To obtain pricing information and place an order for the Green Pin® Open Spelter Socket with Safety Bolt 1" (SKGOS025SB), click the 'Add to Quote' button on this page.
