PRODUCT CODE: G-6412 | PART NUMBER: SKGOS010

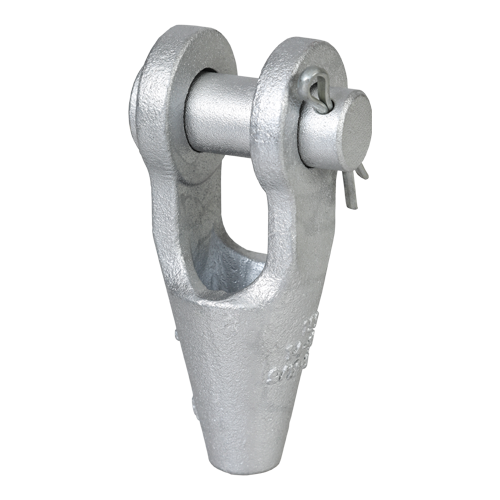

GREEN PIN OPEN SPELTER SOCKET WITH COTTER PIN 3/8" (SKGOS010)

Green Pin® Open Spelter Socket with Cotter Pin 3/8" (SKGOS010)

Made from high tensile steel, this Green Pin® Open Spelter Socket is both durable and reliable. Hot dipped galvanization protects it from corrosion, ensuring long-term use.

Key specs:

  • Size: 3/8 inch
  • Product Code: G-6412
  • Part Number: SKGOS010
  • Minimum Breaking Load: 12 tons
  • Diameter Wire Rope: 3/8 inch
  • Length: 4 7/8 inch
  • Width: 2 7/16 inch
  • Width Inside: 13/16 inch
  • Diameter Pin: 13/16 inch
  • Length Inside: 1 11/32 inch
  • Opening: 15/32 inch
  • Net Weight: 1.49 LBS
  • Temperature Range: -40°C to +200°C
  • Available for wire rope diameter from 6-7 up to 108-115 mm
  • Compatible with Socket Lock Socketing Resin
  • Certifications: 2.1, 2.2, 3.1, CE

Applications include lifting, rigging, and securing in marine and offshore environments in Canada.

Size (inches): 3/8"
Weight (lbs): 1.49

Working Load Limit (t): 12.0
