GREEN PIN OPEN SPELTER SOCKET WITH COTTER PIN 3-3/4" - 4" (SKGOS100)

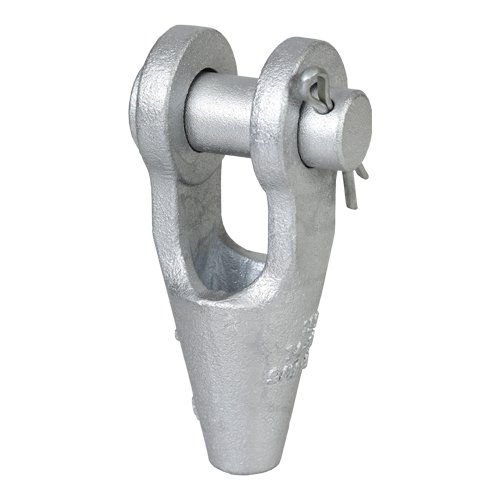

GREEN PIN® Open Spelter Socket with Cotter Pin 3-3/4" - 4" (SKGOS100)

The Green Pin® Open Spelter Socket with Cotter Pin is crafted from high tensile steel and hot-dipped galvanized for lasting durability. This socket is engineered for wire ropes with diameters ranging from 3-3/4" to 4". It includes a spring pin for secure attachment.

Key Specifications:

• Size: 3-3/4" - 4"
• Minimum Breaking Load: 875 tons
• Diameter Wire Rope: 3 3/4" - 4"
• Length: 35 31/32"
• Width: 17 19/32"
• Width Inside: 7 17/32"
• Diameter Pin: 7"
• Length Inside: 10"
• Opening: 4 1/4"
• Net Weight: 882.0 lbs

Product Details:

• Product Code: G-6412
• Material: High tensile steel
• Finish: Hot dipped galvanized
• Temperature Range: -40°C to +200°C
• Certifications: 2.1, 2.2, 3.1, CE

This socket is suitable for various applications, including marine and offshore use within Canada. It can be utilized in combination with Socket Lock Socketing Resin, making it a versatile choice for diverse rigging needs.
