PRODUCT CODE: G-6412 | PART NUMBER: SKGOS042

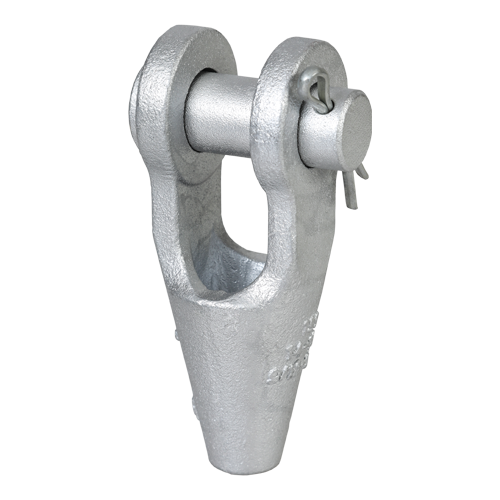

GREEN PIN OPEN SPELTER SOCKET WITH COTTER PIN 1-5/8" (SKGOS042)
Green Pin® Open Spelter Socket with Cotter Pin 1-5/8" (SKGOS042) is engineered for strength and durability. Made from high tensile steel, it is hot-dipped galvanized for long-lasting performance. Ideal for use with wire ropes from 6-7 mm to 108-115 mm in diameter. Compatible with Socket Lock Socketing Resin. The socket features a spring pin for secure attachment.
Specifications:
With a temperature range from -40°C to +200°C and certifications including 2.1, 2.2, 3.1, and CE, this socket is suitable for various industrial and marine applications. Distributed in Canada for offshore and onshore use.
Specifications:
- Size: 1-5/8"
- Product Code: G-6412
- Our Part Number: SKGOS042
- Minimum Breaking Load: 170t
- Diameter Wire Rope: 1 5/8"
- Length: 16 15/32"
- Width: 7 3/8"
- Width Inside: 3"
- Diameter Pin: 3"
- Length Inside: 4 31/32"
- Opening: 1 23/32"
- Net Weight: 59.5 lbs
With a temperature range from -40°C to +200°C and certifications including 2.1, 2.2, 3.1, and CE, this socket is suitable for various industrial and marine applications. Distributed in Canada for offshore and onshore use.
Size (inches): 1-5/8"
Weight (lbs): 59.5
Working Load Limit (t): 170.0
