PRODUCT CODE: G-6412 | PART NUMBER: SKGOS045

GREEN PIN OPEN SPELTER SOCKET WITH COTTER PIN 1-3/4" - 1-7/8" (SKGOS045)

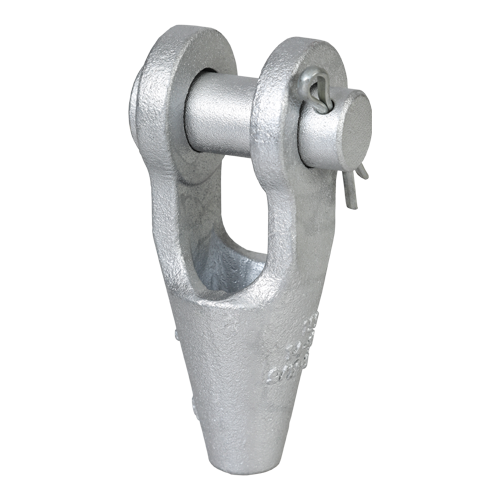

Green Pin® Open Spelter Socket with Cotter Pin 1-3/4" - 1-7/8" (SKGOS045)

Constructed from high tensile steel, the Green Pin® Open Spelter Socket ensures durability and strength. The hot-dipped galvanized finish provides excellent corrosion resistance, making it suitable for harsh environments. Compatible with wire ropes ranging from 1-3/4" to 1-7/8", this socket boasts a minimum breaking load of 225 tons. Designed for efficient use with the Socket Lock Socketing Resin.

Key Specifications:

  • Size: 1-3/4" - 1-7/8"
  • Product Code: G-6412
  • Part Number: SKGOS045
  • Minimum Breaking Load: 225 tons
  • Diameter Wire Rope: 1-3/4" - 1-7/8"
  • Length: 18 7/16"
  • Width: 8 3/8"
  • Width Inside: 3 1/2"
  • Pin Diameter: 3 1/2"
  • Length Inside: 5 1/4"
  • Opening: 2"
  • Net Weight: 92.0 lbs

Ideal for marine, offshore, and other industrial applications in Canada, the Green Pin® Open Spelter Socket is certified to 2.1, 2.2, 3.1, and CE standards. It operates effectively in temperatures ranging from -40°C to +200°C.

Size (inches): 1-3/4" - 1-7/8"
Weight (lbs): 92.0

Working Load Limit (t): 225.0
