PRODUCT CODE: G-6412 | PART NUMBER: SKGOS038

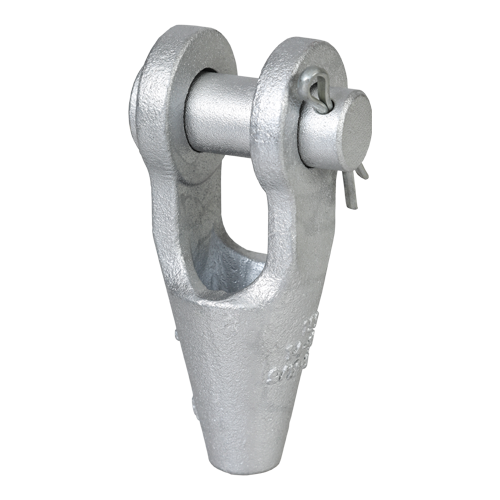

GREEN PIN OPEN SPELTER SOCKET WITH COTTER PIN 1-1/2" (SKGOS038)
Green Pin® Open Spelter Socket with Cotter Pin 1-1/2" (SKGOS038)
Specifications:
This Green Pin® Open Spelter Socket is built for strength and durability. Made of high tensile steel and hot dipped galvanized, it's designed to withstand harsh environments.
The socket fits wire rope diameters from 6-7 mm up to 108-115 mm and is compatible with Socket Lock Socketing Resin. Operating temperature ranges from -40°C to +200°C, making it versatile for various applications, including lifting and marine use.
Specifications:
- Size: 1-1/2"
- Product Code: G-6412
- Our Part Number: SKGOS038
- Number: 118
- Minimum Breaking Load: 150 tons
- Diameter Wire Rope: 1 1/2"
- Length: 15 1/2"
- Width: 7"
- Width Inside: 3"
- Diameter Pin: 2 3/4"
- Length Inside: 5"
- Opening: 1 5/8"
- Net Weight: 48.5 lbs
Certifications include 2.1, 2.2, 3.1, and CE.
Use it for heavy lifting, marine, and offshore applications in Canada.
Size (inches): 1-1/2"
Weight (lbs): 48.5
Working Load Limit (t): 150.0
