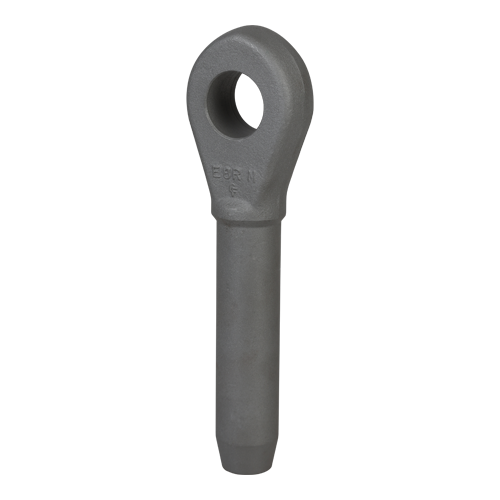

GREEN PIN CLOSED SWAGE SOCKET 7/8" (SKZSC022)

The Green Pin® Closed Swage Socket 7/8" (SKZSC022) is a high tensile steel component designed for wire rope terminations in industrial rigging applications across Canada. This product, with Vancouver Rigging Supply Ltd. part number SKZSC022, offers precise specifications for engineering and construction projects.

Key Specifications:

• Rope Diameter: 7/8" (22 mm)
• Socket Dimensions: 3 1/2" (89 mm) diameter, 10 1/8" (257 mm) length
• Eye Diameter: 1 11/16" (43 mm)
• Swage Diameters:
  • Before swaging: 1.55" (39 mm)
  • After swaging: 1.49" - 1.7" (38 - 43 mm)
• Weight: 7.65 lbs (3.47 kg)

Material and Construction:

• Manufactured from drop forged steel C-1035
• Self-colored finish for corrosion resistance

Applications:

• Offshore oil and gas platforms
• Mining operations
• Bridge construction
• Shipbuilding and marine industries

The Green Pin® Closed Swage Socket is engineered to meet the demands of heavy industrial use. Its design allows for a permanent wire rope termination, providing a stable connection point for loads in various rigging configurations.

For engineers and project managers in Canada seeking technical specifications or to incorporate this component into their rigging designs, select the 'Add to Quote' button to request detailed information and pricing from Vancouver Rigging Supply Ltd.
