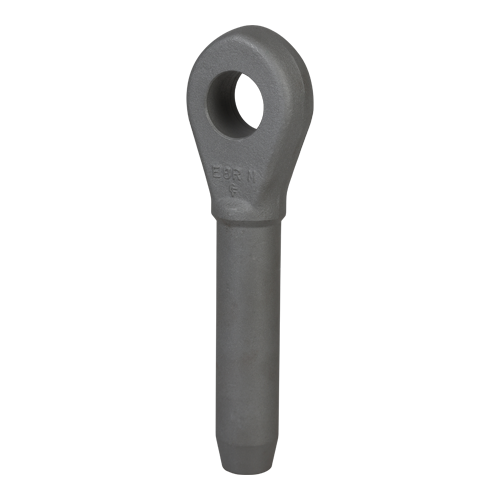

GREEN PIN CLOSED SWAGE SOCKET 7/16" (SKZSC011)

The Green Pin® Closed Swage Socket 7/16" (SKZSC011) is a high tensile steel component designed for rigging applications across Canada. This product, with Vancouver Rigging Supply Ltd. part number SKZSC011, offers precise specifications for engineering and industrial use.

Key Specifications:

• Rope Diameter: 7/16" (11.11 mm)
• Swage Diameter Range: 0.865" - 0.982" (21.97 mm - 24.94 mm)
• Internal Diameter: 0.484" (12.29 mm)
• Overall Dimensions: 2" (50.8 mm) diameter, 5 3/4" (146.05 mm) length
• Eye Diameter: 1 1/16" (26.99 mm)
• Weight: 1.46 lbs (0.66 kg)

Material and Construction:

• Material: Drop forged steel C-1035
• Finish: Self-colored

Applications:

• Marine Operations: Offshore platforms, ship rigging
• Construction: Crane operations, structural support
• Mining: Equipment hoisting, conveyor systems
• Forestry: Logging operations, equipment transport

The Green Pin® Closed Swage Socket is engineered for operations requiring secure cable terminations. Its design allows for consistent load distribution, making it applicable in various industrial sectors throughout Canada.

For procurement inquiries, use the 'Add to Quote' button to request pricing and availability information from Vancouver Rigging Supply Ltd.
