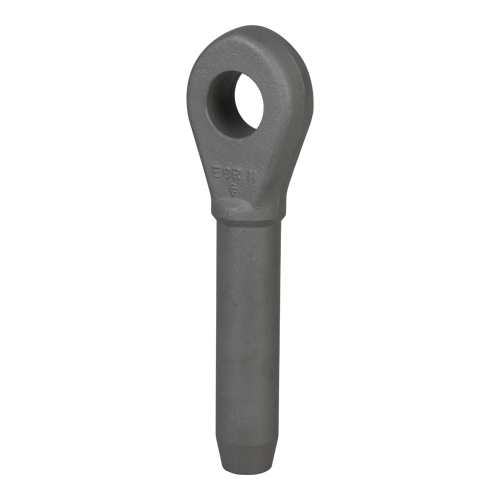

GREEN PIN CLOSED SWAGE SOCKET 5/8" (SKZSC016)

The Green Pin® Closed Swage Socket 5/8" (SKZSC016) is a high tensile steel component designed for cable terminations in rigging applications across Canada. This S-6415 model, with Vancouver Rigging Supply Ltd. part number SKZSC016, offers precise specifications for engineering and industrial use.

Key Specifications:

• Rope Diameter: 5/8" (16 mm)
• Socket Dimensions:
  • Diameter: 2 1/2" (64 mm)
  • Length: 7 1/4" (184 mm)
  • Thickness: 1 1/8" (29 mm)
• Eye Diameter: 1 1/4" (32 mm)
• Internal Diameter: 0.672" (17 mm)
• Swage Specifications:
  • Before swage: 1.16" (29 mm)
  • Min. after swage: 1.115" (28 mm)
  • Max. after swage: 1.257" (32 mm)
• Net Weight: 2.88 lbs (1.3 kg)

Material and Finish:

• Material: Drop forged steel C-1035
• Finish: Self-coloured

Applications:

• Offshore oil and gas platforms
• Marine and shipyard operations
• Construction and infrastructure projects
• Mining and quarrying equipment
• Crane and hoisting systems

This Green Pin® Closed Swage Socket is manufactured to meet rigorous industry standards, making it an engineering solution for companies operating in challenging environments across Canada. Its construction allows for secure cable terminations in various rigging configurations.

For detailed technical specifications, compatibility information, or to request a quote, click the 'Add to Quote' button on this page. Vancouver Rigging Supply Ltd. provides this Green Pin® product as part of its comprehensive inventory of rigging components for Canadian industrial sectors.
