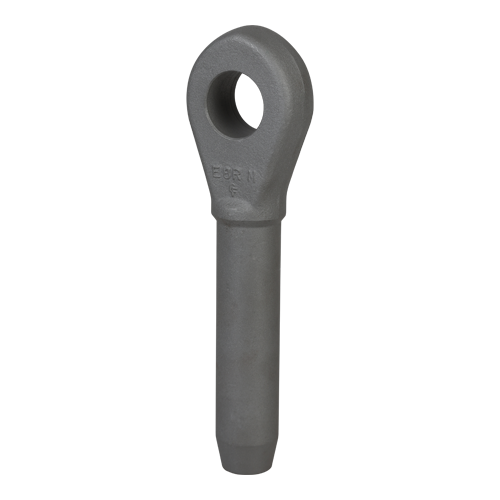

GREEN PIN CLOSED SWAGE SOCKET 3/8" (SKZSC010)

The Green Pin® Closed Swage Socket 3/8" (SKZSC010) is a high tensile steel component designed for rigging applications across various industries in Canada. This product, with part number SKZSC010, is engineered to meet the exacting standards required for heavy-duty rigging operations.

Key Specifications:

• Rope Diameter: 3/8" (9.5 mm)
• Socket Dimensions: 1 11/16" (42.9 mm) diameter, 4 1/2" (114.3 mm) length
• Eye Diameter: 7/8" (22.2 mm)
• Weight: 0.74 lbs (0.34 kg)

Technical Details:

• Material: Drop forged steel C-1035
• Finish: Self-coloured
• Swage Specifications:
  • Minimum diameter after swage: 0.678" (17.2 mm)
  • Maximum diameter after swage: 0.77" (19.6 mm)
  • Diameter before swage: 0.71" (18 mm)

Applications:

This closed swage socket is utilized in multiple sectors including construction, marine operations, and industrial rigging throughout Canada. It serves as a connection point between wire rope and other rigging hardware, offering a permanent termination solution.

Industry Usage:

• Construction: Tower crane rigging, structural support systems
• Marine: Deck equipment, mooring systems, offshore platform rigging
• Mining: Hoisting equipment, dragline operations
• Forestry: Cable logging systems, equipment tethering

Safety Considerations:

Adherence to proper swaging techniques is imperative for maintaining the integrity of the connection. Users must ensure that the swaged diameter falls within the specified range of 0.678" to 0.77" (17.2 mm to 19.6 mm) for optimal performance and safety.

To obtain pricing information and place an order for the Green Pin® Closed Swage Socket 3/8" (SKZSC010), click the 'Add to Quote' button on this page. Our team will respond promptly with a detailed quote tailored to your requirements.
