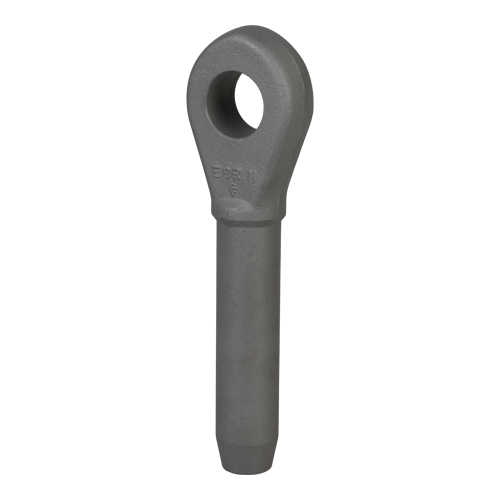

GREEN PIN CLOSED SWAGE SOCKET 3/4" (SKZSC019)

The Green Pin® Closed Swage Socket 3/4" (SKZSC019) is a high tensile steel component designed for Canadian rigging applications. This product, with part number SKZSC019, is engineered to meet the demands of industrial rigging operations across various sectors.

Key Specifications:

• Rope Diameter: 3/4" (19 mm)
• Socket Dimensions: 8 5/8" (219 mm) length, 3" (76 mm) diameter
• Eye Diameter: 1 7/16" (37 mm)
• Weight: 5.07 lbs (2.3 kg)

Technical Details:

• Material: Drop forged steel C-1035
• Finish: Self-coloured
• Swage Specifications:
  • Diameter before swage: 1.42" (36 mm)
  • Min. diameter after swage: 1.365" (35 mm)
  • Max. diameter after swage: 1.545" (39 mm)

Applications:

• Offshore oil and gas platforms
• Marine and shipyard operations
• Construction and infrastructure projects
• Mining and quarrying industries

This Green Pin® Closed Swage Socket is engineered for use in load-bearing applications where a permanent connection between wire rope and rigging hardware is required. It's constructed to withstand the rigors of Canadian industrial environments, including extreme weather conditions.

For procurement inquiries or to request a quote for the Green Pin® Closed Swage Socket 3/4" (SKZSC019), click the 'Add to Quote' button on this page. Vancouver Rigging Supply Ltd. stands ready to support your rigging needs with this high-quality Green Pin® product.
