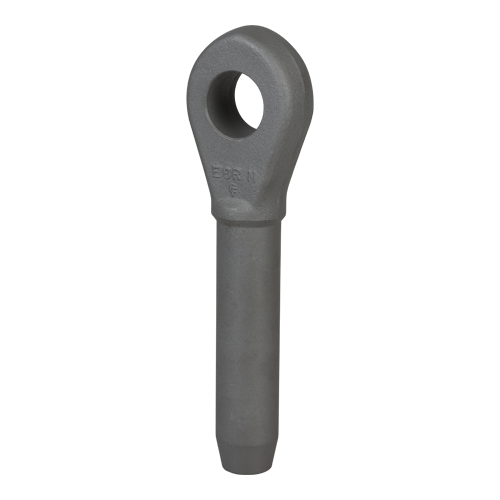

GREEN PIN CLOSED SWAGE SOCKET 1/4" (SKZSC006)

Green Pin® Closed Swage Socket 1/4" (SKZSC006) for Canadian Distribution

The Green Pin® Closed Swage Socket 1/4" (SKZSC006) is a high-tensile steel rigging component available for Canadian distribution. This product, with our part number SKZSC006 and manufacturer code S-6415, is designed for 1/4" diameter rope applications in various industrial sectors.

Technical Specifications:

• Rope Diameter: 1/4" (6.35 mm)
• Swage Diameter: Before: 0.46" (11.68 mm); After: Min 0.428" (10.87 mm), Max 0.495" (12.57 mm)
• Internal Diameter: 0.272" (6.91 mm)
• External Diameter: 1 7/16" (36.51 mm)
• Eye Diameter: 3/4" (19.05 mm)
• Thickness: 1/2" (12.7 mm)
• Length: 3 1/2" (88.9 mm)
• Net Weight: 0.33 lbs (0.15 kg)

Material and Construction:

Manufactured from drop forged steel C-1035, this closed swage socket features a self-colored finish for durability in industrial environments.

Applications:

The Green Pin® Closed Swage Socket is used in:

• Marine operations
• Construction projects
• Oil and gas installations
• Mining operations

Safety and Compliance:

This product adheres to industry standards for load-bearing capacity and safety in rigging applications. Users must follow manufacturer guidelines for proper installation and use.

Procurement:

For pricing and availability of the Green Pin® Closed Swage Socket 1/4" (SKZSC006) in Canada, click the 'Add to Quote' button to request a quote from Vancouver Rigging Supply Ltd.
