GREEN PIN CLOSED SWAGE SOCKET 1-3/8" (SKZSC035)

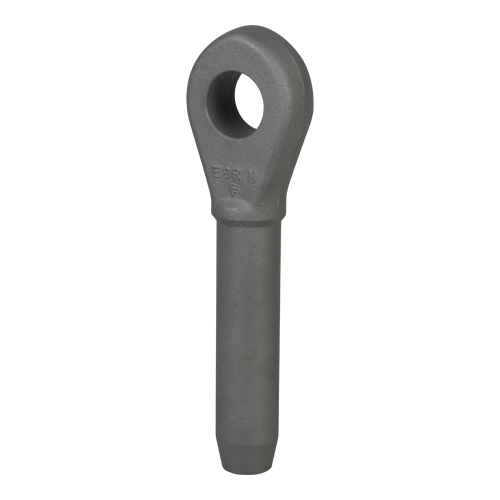

The Green Pin® Closed Swage Socket SKZSC035 (S-6415) is engineered for 1-3/8" (35 mm) wire rope applications in Canadian industrial settings. This high tensile steel component is designed to withstand substantial loads in various rigging configurations.

Key Specifications:

• Rope Diameter: 1-3/8" (35 mm)
• Socket Dimensions: 15-3/4" (400 mm) length, 5-1/4" (133 mm) diameter
• Eye Opening: 2-9/16" (65 mm)
• Weight: 28.9 lbs (13.1 kg)

Swaging Parameters:

• Pre-swage Diameter: 2.56" (65 mm)
• Post-swage Diameter Range: 2.49" to 2.8" (63 mm to 71 mm)

Manufactured from drop forged C-1035 steel, this self-colored socket maintains its structural integrity in demanding industrial environments. Its closed design prevents debris ingress, making it suitable for marine and offshore applications.

Industry Applications:

• Offshore oil and gas platforms
• Marine vessel rigging
• Heavy construction projects
• Mining operations
• Bridge construction and maintenance

The Green Pin® Closed Swage Socket adheres to international standards for safety and performance in rigging applications. It is compatible with various rigging assemblies and can be integrated into both new and existing setups.

For pricing and availability of the Green Pin® Closed Swage Socket SKZSC035, click the 'Add to Quote' button to submit an inquiry.
