PRODUCT CODE: S-6415 | PART NUMBER: SKZSC045

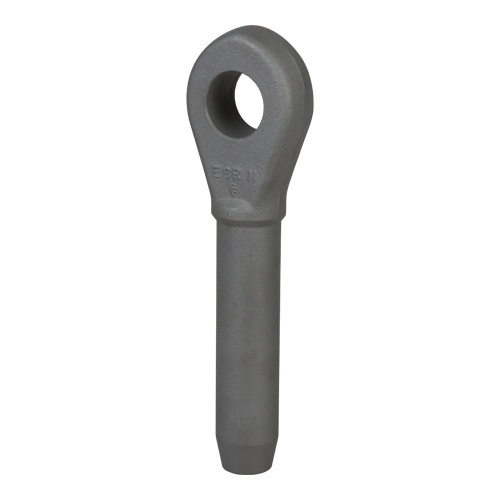

GREEN PIN CLOSED SWAGE SOCKET 1-3/4" (SKZSC045)

The Green Pin® Closed Swage Socket 1-3/4" (SKZSC045) is a high tensile steel component designed for wire rope terminations in heavy-duty rigging applications. This product, available for Canadian distribution, is engineered to meet the demands of industrial lifting, marine operations, and construction projects.

Key Specifications:

  • Product Code: S-6415
  • Our Part Number: SKZSC045
  • Rope Diameter: 1-3/4" (44 mm)
  • Socket Dimensions:
    • Diameter before swage: 3.06" (78 mm)
    • Min. diameter after swage: 2.99" (76 mm)
    • Max. diameter after swage: 3.385" (86 mm)
    • Inside diameter: 1.859" (47 mm)
    • Overall diameter: 6-3/4" (171 mm)
    • Eye diameter: 3-9/16" (90 mm)
    • Thickness: 3" (76 mm)
    • Length: 20" (508 mm)
  • Net Weight: 55.8 lbs (25.3 kg)

Material and Finish:

  • Material: Drop forged steel C-1035
  • Finish: Self-coloured

Applications:

This Green Pin® Closed Swage Socket is used in various industries including:

  • Offshore oil and gas platforms
  • Mining operations
  • Bridge construction
  • Port and harbor equipment
  • Heavy machinery manufacturing

Safety and Compliance:

Engineered to meet industry standards, this socket undergoes testing to ensure performance in load-bearing applications. Users should adhere to load limits and inspection protocols as per regulatory requirements.

To obtain pricing information and place an order for the Green Pin® Closed Swage Socket 1-3/4" (SKZSC045), click the 'Add to Quote' button on this page. Our team will respond to your inquiry promptly.

Size (inches): 1-3/4"
Weight (lbs): 55.8

Working Load Limit (t): N/A
