PRODUCT CODE: S-6415 | PART NUMBER: SKZSC028

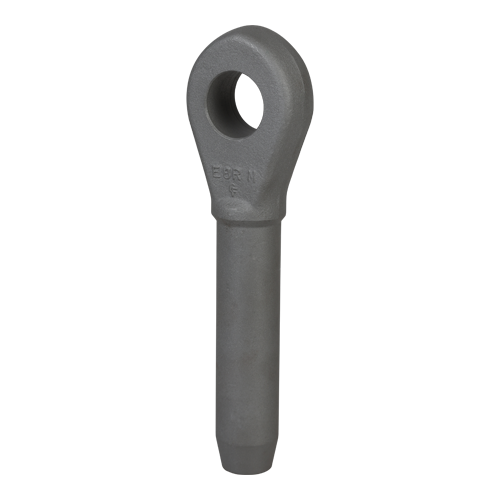

GREEN PIN CLOSED SWAGE SOCKET 1-1/8" (SKZSC028)

The Green Pin® Closed Swage Socket 1-1/8" (SKZSC028) is a high tensile steel component designed for industrial rigging applications across Canada. This socket, with part number S-6415, accommodates 1-1/8" diameter rope and features precise dimensions for optimal performance.

Key Specifications:

  • Swage Diameter Range: 1.99" to 2.245" (50.5 mm to 57 mm) after swaging
  • Internal Diameter: 1.188" (30.2 mm)
  • External Diameter: 4 1/2" (114.3 mm)
  • Eye Diameter: 2 5/16" (58.7 mm)
  • Thickness: 2" (50.8 mm)
  • Length: 12 3/4" (323.9 mm)
  • Weight: 14.9 lbs (6.8 kg)

Material and Construction:

  • Composition: Drop forged steel C-1035
  • Finish: Self-colored

Applications:

  • Maritime Operations: Offshore platforms, ship rigging
  • Construction: Heavy lifting, crane operations
  • Mining: Equipment hoisting, load securing
  • Forestry: Log transportation, equipment tethering

This closed swage socket is engineered to withstand substantial loads in challenging environments. Its design allows for permanent attachment to wire rope, creating a secure termination for lifting and pulling operations.

For businesses requiring this Green Pin® Closed Swage Socket for their Canadian operations, click the 'Add to Quote' button to request pricing information and availability.

Size (inches): 1-1/8"
Weight (lbs): 15.9

Working Load Limit (t): N/A
