PRODUCT CODE: S-6415 | PART NUMBER: SKZSC038

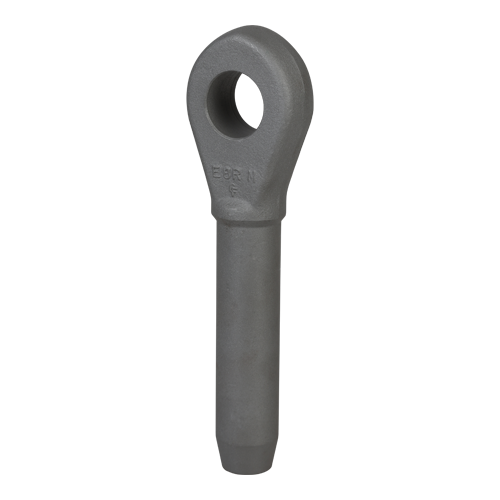

GREEN PIN CLOSED SWAGE SOCKET 1-1/2" (SKZSC038)

The Green Pin® Closed Swage Socket SKZSC038 (S-6415) is engineered for 1-1/2" (38 mm) diameter rope applications in heavy industrial rigging operations across Canada. This high tensile steel component is designed to withstand substantial loads in sectors such as construction, offshore oil and gas, and maritime industries.

Key specifications:

  • Rope diameter: 1-1/2" (38 mm)
  • Swage diameter range: 2.74" to 3.075" (70 mm to 78 mm)
  • Eye diameter: 2-13/16" (71 mm)
  • Overall length: 17" (432 mm)
  • Net weight: 39 lbs (17.7 kg)

Manufactured from drop forged C-1035 steel, this closed swage socket maintains structural integrity under high-stress conditions. The self-colored finish provides corrosion resistance for extended service life in marine and industrial environments.

Applications include:

  • Crane and hoist systems
  • Offshore platform rigging
  • Bridge construction
  • Heavy equipment lifting

This Green Pin® product adheres to industry standards and regulations, ensuring compliance with Canadian safety requirements for rigging and lifting operations.

For procurement inquiries and to request a quote for the Green Pin® Closed Swage Socket SKZSC038, click the 'Add to Quote' button on this page.

Size (inches): 1-1/2"
Weight (lbs): 39.0

Working Load Limit (t): N/A
