PRODUCT CODE: G-6411 | PART NUMBER: SKGCS075
GREEN PIN CLOSED SPELTER SOCKET 3" - 3-1/8" (SKGCS075)

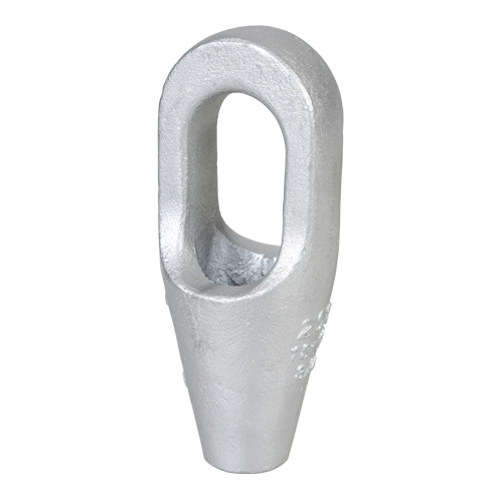

Green Pin® Closed Spelter Socket 3" - 3-1/8" (SKGCS075)
The Green Pin® Closed Spelter Socket, made from high tensile steel, offers superior strength and durability. The hot-dipped galvanized finish ensures long-term resistance to corrosion.
Specifications:
Material: High tensile steel
Finish: Hot dipped galvanized
Temperature Range: -40°C to +200°C
Certifications: 2.1, 2.2, 3.1, CE
Applications include marine, offshore, and industrial sectors. Distributed in Canada.
The Green Pin® Closed Spelter Socket, made from high tensile steel, offers superior strength and durability. The hot-dipped galvanized finish ensures long-term resistance to corrosion.
Specifications:
- Size: 3" - 3-1/8"
- Product Code: G-6411
- Weight: 266.0 lbs
- Our Part Number: SKGCS075
- Number: 228
- Minimum Breaking Load: 560
- Diameter Wire Rope: 3" - 3 1/8"
- Length: 27 inches
- Width: 11 1/2 inches
- Width Inside Bow: 6 23/32 inches
- Length Inside Bow: 11 23/32 inches
- Thickness Bow: 3 9/32 inches
- Opening: 3 3/8 inches
- Net Weight: 266.0 lbs
Material: High tensile steel
Finish: Hot dipped galvanized
Temperature Range: -40°C to +200°C
Certifications: 2.1, 2.2, 3.1, CE
Applications include marine, offshore, and industrial sectors. Distributed in Canada.
Size (inches): 3" - 3-1/8"
Weight (lbs): 266.0
Working Load Limit (t): 560.0
