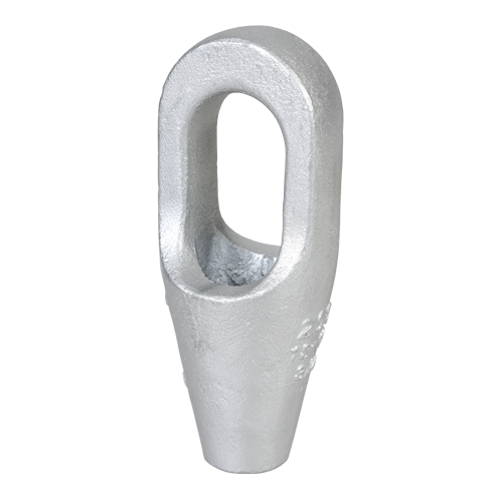

GREEN PIN CLOSED SPELTER SOCKET 3-1/2" X 3-5/8" (SKGCS090)

Green Pin® Closed Spelter Socket SKGCS090

The Green Pin® Closed Spelter Socket is engineered from high tensile steel, ensuring robust performance and longevity. Galvanized for extended durability, it is suitable for wire ropes with a diameter from 3-1/2" to 3-5/8". This socket can be paired with Socket Lock Socketing Resin for enhanced security in various rigging operations.

Specifications:

• Size: 3-1/2" X 3-5/8"
• Product Code: G-6411
• Weight: 399.0 lbs
• Our Part Number: SKGCS090
• Minimum Breaking Load: 720
• Diameter Wire Rope (inch): 3 1/2 - 3 5/8
• Length (inch): 31 1/32
• Width (inch): 13
• Width Inside Bow (inch): 7 3/4
• Length Inside Bow (inch): 13
• Thickness Bow (inch): 4 1/32
• Opening (inch): 3 29/32
• Net Weight (LBS): 399.0
• Material: High tensile steel
• Finish: Hot dipped galvanized
• Temperature Range: -40°C up to +200°C
• Certification: 2.1, 2.2, 3.1, CE

This Green Pin® Closed Spelter Socket is ideal for heavy-duty marine and offshore applications in Canada.
