PRODUCT CODE: P-5363 | PART NUMBER: POGHMB75ROVRL

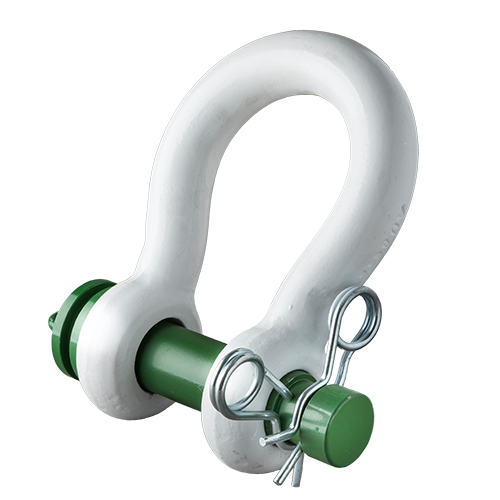

RELEASE ROV SHACKLE GRADE 80 WITH SPRING PINS 3" (POGHMB75ROVRL)

The RELEASE ROV SHACKLE GRADE 80 WITH SPRING PINS 3" (POGHMB75ROVRL) is a precision-engineered rigging component designed for underwater release operations using remotely operated vehicles (ROVs). This Green Pin® product, available through Vancouver Rigging Supply Ltd., is crafted to meet the exacting standards of Canadian maritime and offshore industries.

Key Features:

  • Working Load Limit: 85 t
  • Grade: 80
  • Material: Alloy steel, Grade 8, Polar Quality, quenched and tempered
  • Temperature Range: -60°C to +200°C
  • Safety Factor: Minimum Breaking Load equals 5 x Working Load Limit

Dimensions:

  • Bow Diameter: 3" (76 mm)
  • Pin Diameter: 3 1/4" (83 mm)
  • Eye Diameter: 6 11/32" (161 mm)
  • Eye Width: 2 15/16" (75 mm)
  • Inside Width: 5" (127 mm)
  • Inside Length: 12 15/16" (329 mm)
  • Bow Width: 7 1/2" (191 mm)
  • Overall Length: 20 3/4" (527 mm)
  • Bolt Length: 14 3/4" (375 mm)
  • Overall Width: 13 3/8" (340 mm)
  • Net Weight: 132 lbs (60 kg)

Specialized Features:

  • Dual Spring Pins: Prevent unintentional load release
  • White Coating: Improves underwater visibility
  • Green-Painted Pin: Facilitates identification
  • In-Line Use: Designed for straight-line load applications

Applications:

  • Offshore Oil and Gas: Subsea equipment handling
  • Marine Construction: Underwater structure assembly
  • Oceanographic Research: Deployment of scientific instruments
  • Salvage Operations: Retrieval of sunken objects

This Green Pin® ROV shackle is manufactured to withstand the rigors of underwater environments and ROV manipulation. Its design allows for efficient load release in subsea conditions, making it an indispensable tool for Canadian maritime operations.

For detailed specifications and to request a quote for the POGHMB75ROVRL, click the 'Add to Quote' button on this page. Vancouver Rigging Supply Ltd. stands ready to support your underwater rigging requirements with this advanced Green Pin® product.

Size (inches): 3"
Weight (lbs): 132.0

Working Load Limit (t): 85.0
