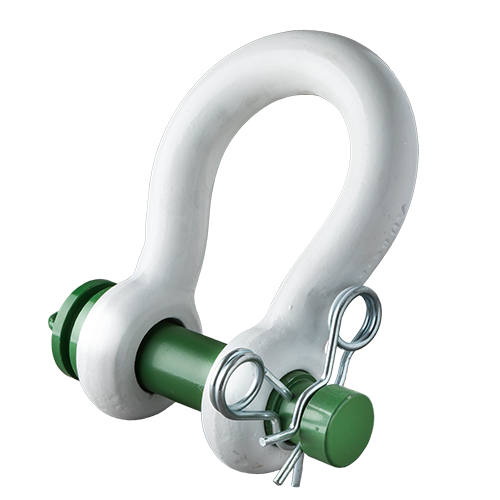

RELEASE ROV SHACKLE GRADE 80 WITH SPRING PINS 2" (POGHMB50ROVRL)

The Green Pin® RELEASE ROV SHACKLE GRADE 80 WITH SPRING PINS 2" (POGHMB50ROVRL) is engineered for subsea release operations using remotely operated vehicles (ROVs). This grade 8 shackle, available through Vancouver Rigging Supply Ltd., is designed for Canadian industrial applications requiring precise underwater load management.

Key Features:

• Working Load Limit: 35 t
• Material: Alloy steel, Grade 8, Polar Quality, quenched and tempered
• Temperature Range: -60°C to +200°C
• Safety Factor: Minimum Breaking Load equals 5 x Working Load Limit

Dimensions:

• Bow Diameter: 2" (50.8 mm)
• Pin Diameter: 2 1/4" (57.15 mm)
• Eye Diameter: 4 9/16" (115.89 mm)
• Inside Width: 3 9/32" (83.34 mm)
• Inside Length: 7 3/4" (196.85 mm)
• Overall Length: 13 5/32" (334.16 mm)
• Net Weight: 42 lbs (19.05 kg)

Applications:

• Offshore Oil and Gas: Subsea equipment installation and retrieval
• Marine Construction: Underwater structural assembly
• Oceanographic Research: Deployment of scientific instruments
• Salvage Operations: Recovery of sunken vessels or cargo

Engineering Considerations:

• Dual Spring Pins: Prevent unintended load release
• White Coating: Enhances underwater visibility
• Green Painted Pin: Facilitates visual identification
• In-line Use Only: Designed for axial load applications

This ROV shackle is engineered for companies engaged in underwater operations across Canada's coastal regions. Its design allows for efficient assembly and disassembly in subsea environments, supporting various marine industries.

For technical specifications or to request a quote for the Green Pin® RELEASE ROV SHACKLE GRADE 80 WITH SPRING PINS 2" (POGHMB50ROVRL), click the 'Add to Quote' button on this page.
