PRODUCT CODE: P-5363 | PART NUMBER: POGHMB65ROVRL

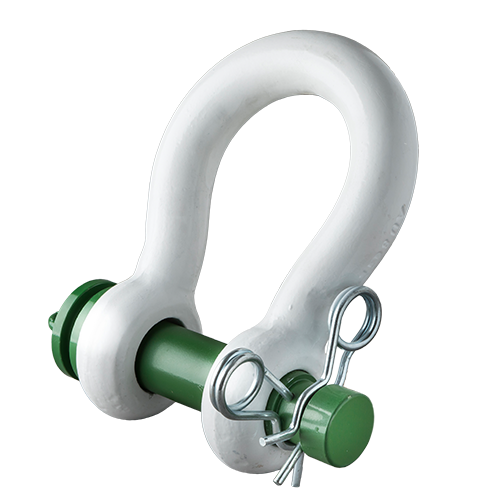

RELEASE ROV SHACKLE GRADE 80 WITH SPRING PINS 2-1/2" (POGHMB65ROVRL)

The RELEASE ROV SHACKLE GRADE 80 WITH SPRING PINS 2-1/2" (POGHMB65ROVRL) is a precision-engineered rigging component designed for subsea operations. This Green Pin® product, available through Canadian distribution, is specifically crafted for use with remotely operated vehicles (ROVs) in underwater environments.

Key Features:

  • Working Load Limit: 55 t
  • Grade: 80
  • Material: Alloy steel, quenched and tempered
  • Temperature Range: -60°C to +200°C
  • Safety Factor: Minimum Breaking Load equals 5 x Working Load Limit

Dimensions:

  • Bow Diameter: 2 1/2" (63.5 mm)
  • Pin Diameter: 2 3/4" (69.85 mm)
  • Eye Diameter: 5 23/32" (145.26 mm)
  • Eye Width: 2 9/16" (65.09 mm)
  • Inside Width: 4 1/8" (104.78 mm)
  • Inside Length: 10 1/4" (260.35 mm)
  • Bow Width: 7 3/32" (180.18 mm)
  • Overall Length: 17 3/32" (434.15 mm)
  • Bolt Length: 12 15/16" (328.63 mm)
  • Overall Width: 12 3/16" (309.56 mm)
  • Spring Pin Diameter: 11/32" (8.73 mm)
  • Net Weight: 83.8 lbs (38.01 kg)

Application:

  • Subsea Operations: Engineered for underwater release operations
  • ROV Compatibility: Designed for easy manipulation by remotely operated vehicles
  • Industries: Offshore oil and gas, marine construction, underwater research

Safety Features:

  • Dual Spring Pins: Prevent unintended load release
  • White Coating: Enhances underwater visibility
  • Green Painted Pin: For easy identification

Additional Information:

  • Part Number: POGHMB65ROVRL
  • Product Code: P-5363
  • Usage: For in-line use only
  • Customization: Supplied without wires, allowing for custom wiring plans

This Green Pin® ROV shackle is engineered to meet the demands of underwater rigging operations. Its design facilitates efficient load release in subsea environments while maintaining safety standards. To obtain this product for your Canadian operations, click the 'Add to Quote' button for a detailed pricing inquiry.

Size (inches): 2-1/2"
Weight (lbs): 83.8

Working Load Limit (t): 55.0
