RELEASE ROV SHACKLE GRADE 80 WITH SPRING PINS 1-3/4" (POGHMB45ROVRL)

The RELEASE ROV SHACKLE GRADE 80 WITH SPRING PINS 1-3/4" (POGHMB45ROVRL) from Green Pin® is a grade 8 shackle engineered for subsea release operations using remotely operated vehicles (ROVs). This product, available for Canadian distribution, is designed to facilitate efficient underwater load disengagement.

Key Features:

• Working Load Limit: 25 t
• Material: Alloy steel, Grade 8, Polar Quality, quenched and tempered
• Temperature Range: -60°C to +200°C
• Safety Factor: Minimum Breaking Load equals 5 x Working Load Limit
• Finish: Bow painted white, pin painted green for underwater visibility

Dimensions:

• Bow Diameter: 1 3/4" (44 mm)
• Pin Diameter: 2" (51 mm)
• Eye Diameter: 4 1/32" (102 mm)
• Eye Width: 1 25/32" (45 mm)
• Inside Width: 2 29/32" (74 mm)
• Inside Length: 7" (178 mm)
• Bow Width: 4 15/16" (125 mm)
• Total Length: 11 13/16" (300 mm)
• Bolt Length: 9 19/32" (244 mm)
• Overall Width: 8 17/32" (217 mm)
• Spring Pin Diameter: 11/32" (9 mm)
• Net Weight: 30 LBS (13.6 kg)

Applications:

• Offshore Oil and Gas: Subsea equipment installation and retrieval
• Marine Construction: Underwater structural assembly
• Oceanographic Research: Deployment and recovery of scientific instruments
• Salvage Operations: Underwater recovery of sunken vessels or cargo

Technical Specifications:

• Product Code: P-5363
• Our Part Number: POGHMB45ROVRL
• Usage: For in-line use only
• Wiring: Supplied without wires, allowing custom wiring plans

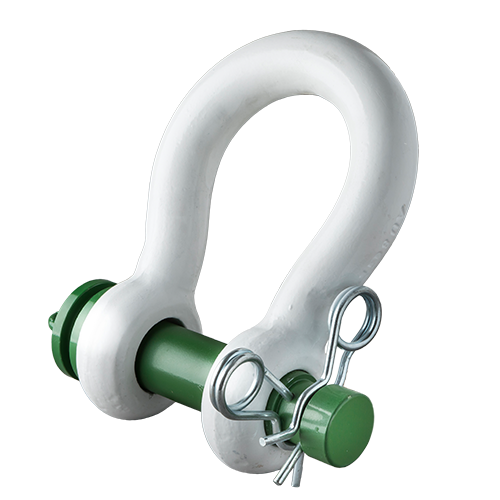

The Green Pin® Spring Pin ROV Shackle incorporates two spring pins to prevent unintended load release. Its white coating enhances underwater visibility and durability. This shackle is part of a range with working load limits from 6.5 to 85 t.

For pricing information on the RELEASE ROV SHACKLE GRADE 80 WITH SPRING PINS 1-3/4" (POGHMB45ROVRL), click the 'Add to Quote' button to request a customized quote.
