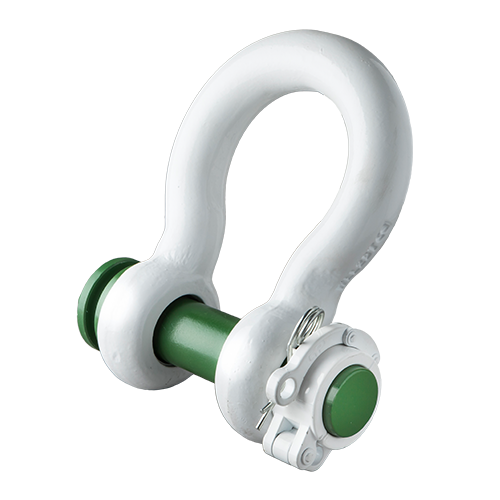

RELEASE ROV SHACKLE GRADE 80 WITH LOCKING CLAMP 2" (POGHMB50ROVRLLC)

The Green Pin® Locking Clamp ROV Shackle (POGHMB50ROVRLLC) from Vancouver Rigging Supply Ltd. is engineered for underwater release operations using remotely operated vehicles (ROVs). This grade 8 shackle, developed for sub-sea applications, features a working load limit of 35 t and a net weight of 45.7 lbs (20.7 kg).

Key measurements include:

• Bow diameter: 2" (50.8 mm)
• Pin diameter: 2 1/4" (57.15 mm)
• Eye diameter: 4 9/16" (115.9 mm)
• Inside width: 3 9/32" (83.3 mm)
• Inside length: 7 3/4" (196.85 mm)
• Overall length: 13 25/32" (350.1 mm)
• Bolt length: 10 19/32" (268.9 mm)

The shackle's locking system is designed for ease of use by ROV pilots, preventing unintended load release. Its white coating improves underwater visibility and contributes to long-term durability in marine environments.

Industries that can benefit from this shackle include:

• Offshore oil and gas exploration
• Underwater construction
• Marine salvage operations
• Oceanographic research

The Green Pin® Locking Clamp ROV Shackle meets industry standards for underwater equipment and is manufactured to withstand the pressures of deep-sea environments.

For Canadian companies seeking this specialized sub-sea rigging component, click the 'Add to Quote' button to request pricing information from Vancouver Rigging Supply Ltd.
