PRODUCT CODE: P-5365 | PART NUMBER: POGHMB75ROVRLLC

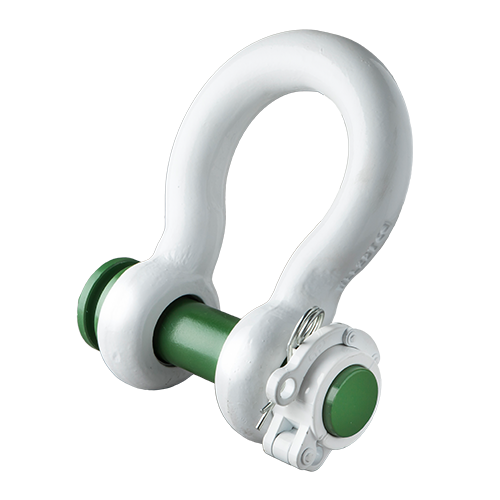

RELEASE ROV SHACKLE GRADE 80 WITH LOCKING CLAMP 2-1/2" (POGHMB75ROVRLLC)

The Green Pin® Locking Clamp ROV Shackle (POGHMB75ROVRLLC) from Vancouver Rigging Supply Ltd. stands as a pivotal component for subsea operations involving remotely operated vehicles (ROVs). This grade 8 shackle, engineered for underwater applications, boasts a working load limit of 85 t, catering to heavy-duty marine tasks across Canada.

Key specifications include:

  • Dimensions: 20 3/4" (527 mm) length, 13 3/8" (340 mm) width
  • Inside measurements: 12 15/16" (329 mm) length, 5" (127 mm) width
  • Bow diameter: 3" (76 mm)
  • Pin diameter: 3 1/4" (83 mm)
  • Net weight: 135 lbs (61 kg)

The shackle's white coating enhances underwater visibility, while its robust locking mechanism prevents unintended load release. The 1 29/32" (48 mm) wide locking clamp facilitates ease of handling for ROV pilots during deep-sea operations.

Industries benefiting from this shackle include offshore oil and gas, marine construction, and underwater research. Its design addresses the challenges of subsea rigging, offering a solution for companies engaged in oceanic infrastructure projects and exploration.

Certifications for this Green Pin® product encompass international maritime standards, ensuring compliance with offshore regulations. For detailed certification information and to request a quote, click the 'Add to Quote' button on this page.

Size (inches): 2-1/2"
Weight (lbs): 135.0

Working Load Limit (t): 55.0
