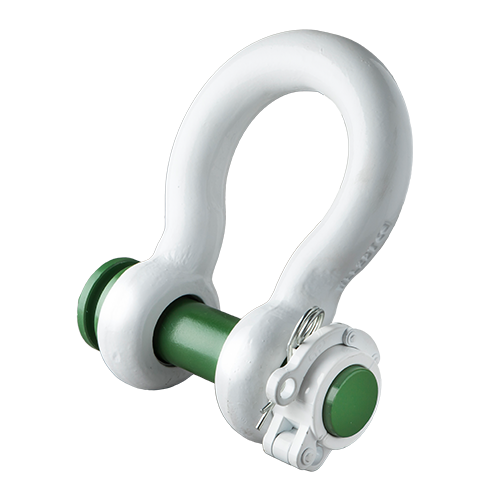

RELEASE ROV SHACKLE GRADE 80 WITH LOCKING CLAMP 1-3/4" (POGHMB45ROVRLLC)

The Green Pin® Locking Clamp ROV Shackle (POGHMB45ROVRLLC) from Vancouver Rigging Supply Ltd. serves Canadian industries requiring underwater rigging solutions. This grade 8 shackle, engineered for sub-sea applications, features a 25 t working load limit and white coating for improved underwater visibility.

Key measurements include:

• Bow diameter: 1 3/4" (44.45 mm)
• Pin diameter: 2" (50.8 mm)
• Inside length: 7" (177.8 mm)
• Overall length: 12 5/32" (308.74 mm)
• Net weight: 32.2 lbs (14.61 kg)

The locking mechanism allows for controlled release operations using remotely operated vehicles (ROVs). This shackle finds applications in offshore oil and gas, marine construction, and underwater salvage operations across Canada.

Certifications for this product include:

• ABS (American Bureau of Shipping)
• DNV-GL (Det Norske Veritas-Germanischer Lloyd)
• Lloyd's Register

For pricing information on the Green Pin® Locking Clamp ROV Shackle, click the 'Add to Quote' button to request a quote tailored to your project requirements.
