PRODUCT CODE: P-5365 | PART NUMBER: POGHMB28ROVRLLC

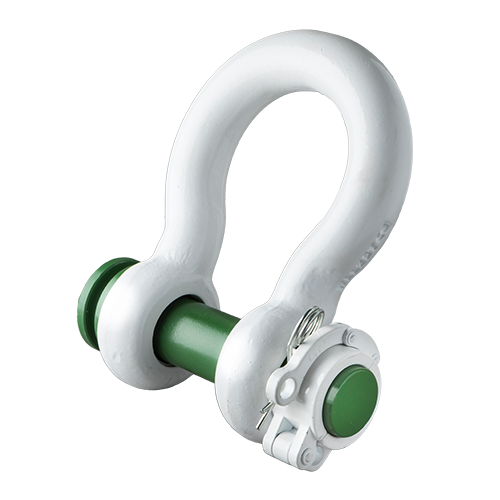

RELEASE ROV SHACKLE GRADE 80 WITH LOCKING CLAMP 1-1/8" (POGHMB28ROVRLLC)

The Green Pin® Locking Clamp ROV Shackle (POGHMB28ROVRLLC) is engineered for underwater release operations using remotely operated vehicles (ROVs). This grade 8 shackle, developed for sub-sea applications, features a robust locking system that prevents unintended load release. Its white coating enhances underwater visibility and durability.

Key Specifications:

  • Working Load Limit: 9.5 t
  • Net Weight: 9.36 lbs (4.25 kg)
  • Shackle Pin Weight: 4.4"
  • Bow Diameter: 1 1/8" (28.58 mm)
  • Pin Diameter: 1 1/4" (31.75 mm)
  • Eye Diameter: 2 19/32" (65.88 mm)
  • Inside Width: 1 7/8" (47.63 mm)
  • Inside Length: 4 1/4" (107.95 mm)
  • Overall Length: 7 7/8" (200.03 mm)
  • Bolt Length: 6 3/4" (171.45 mm)
  • Overall Width: 5 5/32" (131.36 mm)
  • Locking Clamp Width: 1 29/32" (48.42 mm)

Applications:

  • Offshore Oil and Gas: Subsea equipment installation and retrieval
  • Marine Salvage: Underwater recovery operations
  • Scientific Research: Deep-sea exploration and equipment deployment
  • Underwater Construction: Placement and removal of structures

Features:

  • ROV-Friendly Design: Engineered for ease of operation by ROV pilots
  • Secure Locking Mechanism: Prevents accidental load release
  • Enhanced Visibility: White coating improves underwater detection
  • Corrosion Resistance: Suitable for prolonged submersion

This Green Pin® Locking Clamp ROV Shackle is manufactured to meet industry standards and is supported by relevant certifications. For specific certification details and to request a quote, click the 'Add to Quote' button on this page.

Size (inches): 1-1/8"
Weight (lbs): 9.36

Working Load Limit (t): 9.5
