RELEASE ROV SHACKLE GRADE 80 WITH LOCKING CLAMP 1-1/4" (POGHMB32ROVRLLC)

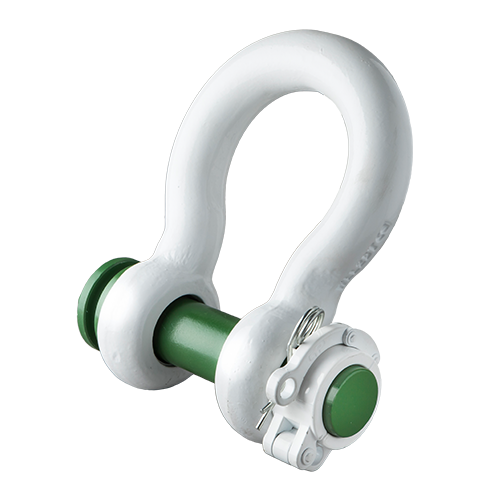

The Green Pin® Locking Clamp ROV Shackle (POGHMB32ROVRLLC) is engineered for underwater release operations with remotely operated vehicles (ROVs). This grade 8 shackle, developed for sub-sea applications, offers a working load limit of 12 t and features a white coating to improve visibility in marine environments.

Key Specifications:

• Shackle pin weight: 4.98" (126.5 mm)
• Net weight: 11.8 lbs (5.35 kg)
• Bow diameter: 1 1/4" (31.75 mm)
• Pin diameter: 1 3/8" (34.93 mm)
• Eye diameter: 2 13/16" (71.44 mm)
• Inside width: 2" (50.8 mm)
• Inside length: 4 17/32" (115.09 mm)
• Overall length: 8 3/8" (212.73 mm)
• Bolt length: 7 1/4" (184.15 mm)
• Overall width: 5 25/32" (146.84 mm)
• Locking clamp width: 1 29/32" (48.42 mm)

This ROV shackle incorporates a locking system designed for straightforward operation by ROV pilots, preventing unintended load release. Its construction addresses the requirements of offshore oil and gas, marine construction, and underwater salvage operations across Canada.

The Green Pin® Locking Clamp ROV Shackle adheres to industry standards and undergoes testing to meet sub-sea application requirements. Its design allows for use in cold water environments and withstands corrosive saltwater conditions.

Canadian companies engaged in marine engineering, offshore energy exploration, or underwater infrastructure maintenance will find this shackle applicable to their operations. It integrates into ROV systems for tasks such as pipeline installation, underwater cable laying, and marine research equipment deployment.

To obtain pricing information and availability for the Green Pin® Locking Clamp ROV Shackle (POGHMB32ROVRLLC), click the 'Add to Quote' button on this page to submit a quote request.
