RELEASE ROV SHACKLE GRADE 80 WITH LOCKING CLAMP 1-1/2" (POGHMB38ROVRLLC)

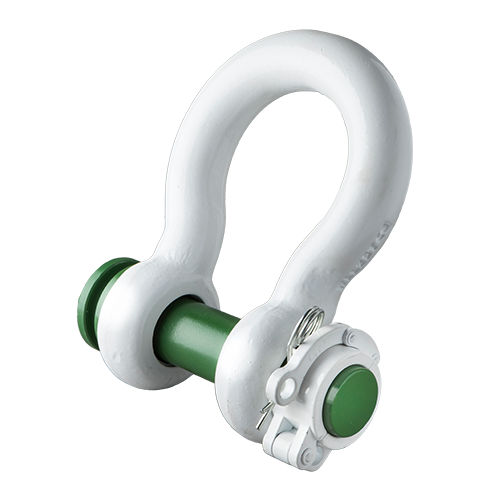

The Green Pin® Locking Clamp ROV Shackle (POGHMB38ROVRLLC) is a grade 8 shackle engineered for subsea operations. This specialized rigging component, available through Vancouver Rigging Supply Ltd., is designed to facilitate release operations with remotely operated vehicles (ROVs) in underwater environments.

Key specifications include:

• Working Load Limit: 17 t
• Net Weight: 20.4 lbs (9.25 kg)
• Overall Length: 10 1/2" (266.7 mm)
• Inside Length: 5 3/4" (146.05 mm)
• Bow Diameter: 1 1/2" (38.1 mm)
• Pin Diameter: 1 5/8" (41.275 mm)
• Eye Diameter: 3 1/2" (88.9 mm)

This ROV shackle features:

• Advanced locking system: Prevents unintended load release
• ROV-friendly design: Facilitates handling by ROV pilots
• White coating: Improves underwater visibility and corrosion resistance

Industries benefiting from this shackle include offshore oil and gas, marine construction, and underwater salvage operations. Its design addresses the challenges of deep-sea environments and remote operation requirements.

For Canadian companies seeking reliable subsea rigging solutions, click the 'Add to Quote' button to request pricing information for the Green Pin® Locking Clamp ROV Shackle from Vancouver Rigging Supply Ltd.
