GREEN PIN THEATRE SHACKLE SCREW PIN 7/16” (GPBHBB11)

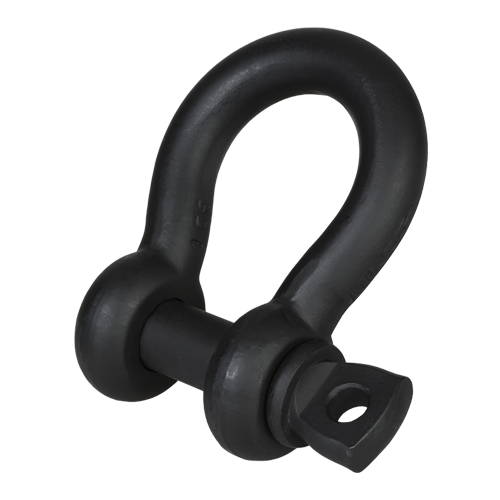

The Green Pin® Theatre Shackle Screw Pin 7/16" (GPBHBB11) is a specialized rigging component designed for use in theatrical and entertainment settings across Canada. This matte black bow shackle features a screw collar pin, offering non-reflective properties crucial for stage applications.

Key Specifications:

• Working Load Limit: 1-1/2 t
• Bow Diameter: 7/16" (11 mm)
• Pin Diameter: 1/2" (13 mm)
• Eye Diameter: 31/32" (25 mm)
• Inside Width: 3/4" (19 mm)
• Inside Length: 1 11/16" (43 mm)
• Overall Length: 2 7/8" (73 mm)
• Bolt Length: 2 11/32" (59 mm)
• Net Weight: 0.42 lbs (191 g)

Engineering Specifications:

• Material: High tensile steel, Grade 6, quenched and tempered
• Safety Factor: Minimum Breaking Load equals 6 times Working Load Limit
• Temperature Range: -40°C to +200°C
• Product Code: G-4161T
• Our Part Number: GPBHBB11

Industry Applications:

• Theatre and Performance Venues: Non-reflective rigging for lighting and set elements
• Film and Television Production: Camera rigging and set construction
• Concert and Event Staging: Audio and visual equipment suspension

Certifications:

• EN 13889
• US Federal Specification RR-C-271 Type IVA Class 2, Grade A (performance requirements)
• ASME B30.26 (for 2 t and above)

The Green Pin® Theatre Shackle's screw collar pin enables assembly and disassembly in frequent rigging scenarios. A chamber in the shackle eye conceals the screw thread, reducing rope wear. Canadian companies requiring specialized rigging solutions for entertainment and theatrical applications can request a quote for the GPBHBB11 by clicking the 'Add to Quote' button on this page.
