GREEN PIN THEATRE SHACKLE SCREW PIN 5/8” (GPBHBB16)

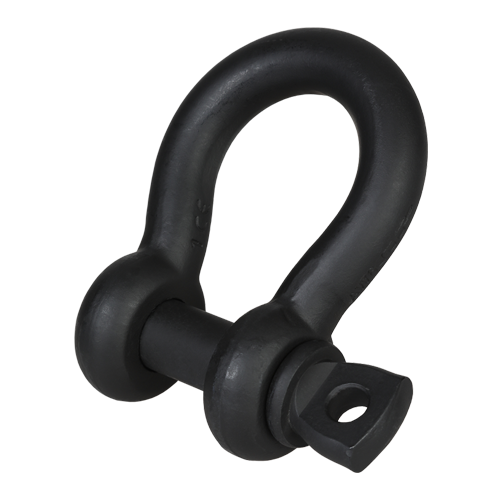

The Green Pin® Theatre Shackle Screw Pin 5/8" (GPBHBB16) stands as a purpose-built rigging component for Canadian entertainment venues. This matte black bow shackle, identified by part number GPBHBB16, features a screw collar pin designed for frequent assembly and disassembly in theatrical settings.

Key Specifications:

• Working Load Limit: 3-1/4 t
• Bow Diameter: 5/8" (16 mm)
• Pin Diameter: 3/4" (19 mm)
• Eye Diameter: 1 9/16" (40 mm)
• Inside Width: 1 1/16" (27 mm)
• Inside Length: 2 17/32" (64 mm)
• Overall Length: 4 11/32" (110 mm)
• Net Weight: 1.38 LBS (0.63 kg)

Engineering Specifications:

• Material: High tensile steel, Grade 6, quenched and tempered
• Safety Factor: Minimum Breaking Load equals 6 times Working Load Limit
• Temperature Range: -40°C to +200°C
• Compliance: EN 13889, US Fed. Spec. RR-C-271 Type IVA Class 2, Grade A, ASME B30.26 (2 t and above)

The matte black finish minimizes light reflection, making it unobtrusive during performances. The eye's chamber conceals the screw thread, reducing rope wear. This shackle serves rigging needs in theaters, concert venues, and film production sets across Canada.

For procurement inquiries, click the 'Add to Quote' button to initiate the quotation process.
