GREEN PIN THEATRE SHACKLE SCREW PIN 5/16” (GPBHBB08)

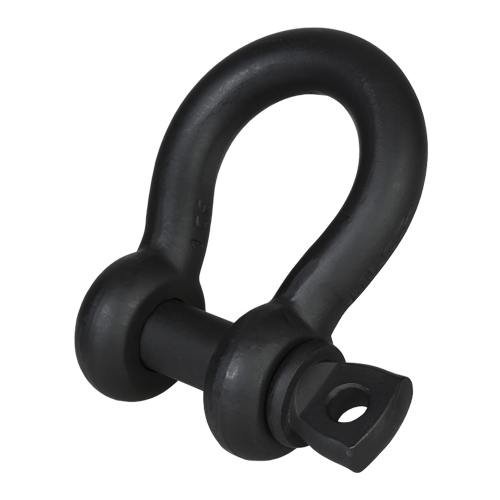

The Green Pin® Theatre Shackle Screw Pin 5/16" (GPBHBB08) stands out for its specialized design tailored to theatrical and entertainment applications. This matte black bow shackle, featuring a screw collar pin, offers a non-reflective finish that prevents distraction during performances.

Key specifications of this Canadian-distributed rigging component include:

• Working Load Limit: 0.75 t
• Bow Diameter: 5/16" (8 mm)
• Pin Diameter: 3/8" (9.5 mm)
• Eye Diameter: 25/32" (20 mm)
• Inside Width: 17/32" (13.5 mm)
• Inside Length: 1 1/4" (31.75 mm)
• Total Length: 2 7/32" (56 mm)
• Net Weight: 0.22 lbs (100 g)

Engineered from high tensile steel (Grade 6, quenched and tempered), this shackle maintains structural integrity in temperatures ranging from -40°C to +200°C. The screw pin design facilitates assembly and disassembly in dynamic rigging environments.

Industries benefiting from the GPBHBB08 include:

• Theatre and Concert Production
• Film and Television Studios
• Event Management Companies
• Touring Productions

The shackle's eye incorporates a chamber that conceals the screw thread, reducing rope wear during use. This design element addresses the specific needs of entertainment rigging professionals.

Adherence to industry standards is demonstrated through compliance with:

• EN 13889
• US Federal Specification RR-C-271 Type IVA Class 2, Grade A
• ASME B30.26 (for sizes 2 t and above)

The product's safety factor ensures that the minimum breaking load (MBL) is six times the working load limit, providing a substantial margin for operational safety.

For pricing and availability of the Green Pin® Theatre Shackle Screw Pin 5/16" (GPBHBB08), select the 'Add to Quote' button to initiate a request for quotation.
